Overview

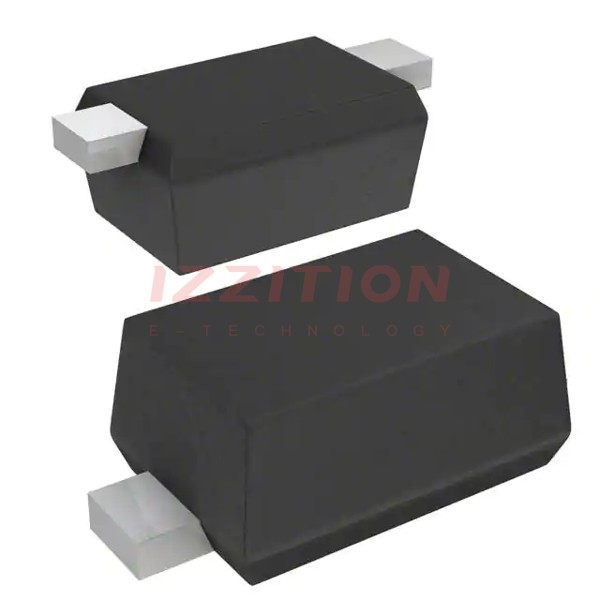

The BAS70KFILM is a 70 V Schottky barrier diode produced by STMicroelectronics. This device is part of the BAS70 series, which is specifically designed for signal detection and temperature compensation in RF applications. The BAS70KFILM is packaged in the SOD-523 (SC-79) package style, making it suitable for surface mount technology (SMT) applications. This diode is known for its low conduction losses, negligible switching losses, and low forward and reverse recovery times, making it an ideal choice for high-frequency and high-efficiency applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 70 | V |
| Continuous Forward Current (IF) | 70 | mA |
| Surge Non-Repetitive Forward Current (IFSM) | 1 | A (tp = 10 ms, Sinusoidal) |
| Storage Temperature Range (Tstg) | -65 to +150 | °C |
| Maximum Operating Junction Temperature (Tj) | 150 | °C |
| Maximum Soldering Temperature (TL) | 260 | °C |
| Reverse Leakage Current (IR) | 10 µA (VR = 70 V, Tj = 25 °C) | |
| Forward Voltage Drop (VF) | 1000 mV (IF = 15 mA, Tj = 25 °C) | |
| Diode Capacitance (C) | 2 pF (VR = 0 V, F = 1 MHz) | |
| Series Inductance (LS) | 1.5 nH | |
| Package Style | SOD-523 (SC-79) | |
| Mounting Method | Surface Mount |
Key Features
- Very low conduction losses
- Negligible switching losses
- Low forward and reverse recovery times
- Surface mount device
- Low capacitance diode
- Low resistance and inductance
Applications
The BAS70KFILM is specially suited for signal detection and temperature compensation in RF applications. Its low capacitance, low series inductance, and low resistance make it ideal for high-frequency circuits, including those in wireless communication devices, radar systems, and other high-efficiency electronic systems.
Q & A
- What is the maximum repetitive peak reverse voltage of the BAS70KFILM?
The maximum repetitive peak reverse voltage (VRRM) is 70 V. - What is the continuous forward current rating of the BAS70KFILM?
The continuous forward current (IF) is 70 mA. - What is the maximum operating junction temperature of the BAS70KFILM?
The maximum operating junction temperature (Tj) is 150 °C. - What package style is the BAS70KFILM available in?
The BAS70KFILM is packaged in SOD-523 (SC-79). - What are the key features of the BAS70KFILM?
The key features include very low conduction losses, negligible switching losses, low forward and reverse recovery times, and low capacitance. - What are the typical applications of the BAS70KFILM?
The BAS70KFILM is typically used in signal detection and temperature compensation in RF applications. - What is the forward voltage drop of the BAS70KFILM at 15 mA?
The forward voltage drop (VF) at 15 mA is 1000 mV. - What is the diode capacitance of the BAS70KFILM at 1 MHz?
The diode capacitance (C) at 1 MHz is 2 pF. - Is the BAS70KFILM RoHS compliant?
Yes, the BAS70KFILM is RoHS compliant. - What is the ECCN code for the BAS70KFILM?
The ECCN code for the BAS70KFILM is EAR99.
