Overview
The TMC1175AN2C50 is an 8-bit analog-to-digital converter (ADC) manufactured by Fairchild Semiconductor. This component is part of Fairchild's high-speed ADC family and is designed for applications requiring fast and accurate analog-to-digital conversion. The TMC1175AN2C50 features a two-step, flash conversion architecture, making it suitable for a variety of high-speed data acquisition tasks.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | TMC1175AN2C50 |
| Number of Bits | 8 |
| Converter Type | Analog to Digital Converter (ADC) |
| Conversion Architecture | Two-Step, Flash |

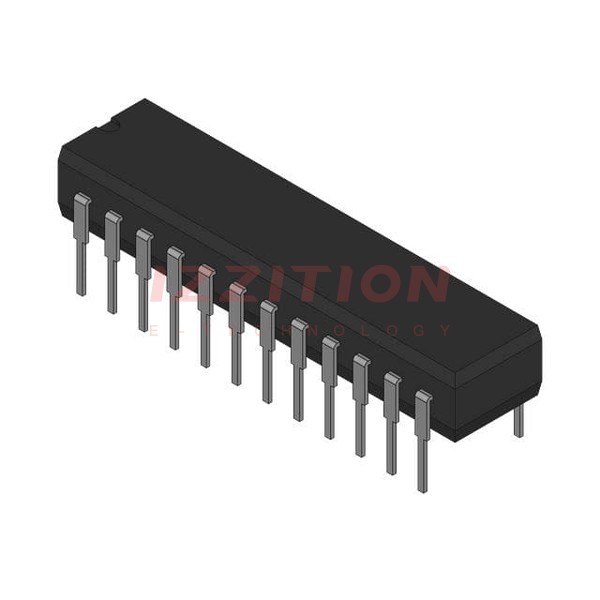

| Package Type | 24-Pin PDIP (Plastic Dual In-Line Package) |
| Supply Voltage | 3.3 V |
| Operating Temperature | -40°C to 70°C |
| Linearity Error-Max (EL) | 0.2% |
| Moisture Sensitivity Level | 2A |
| Technology | CMOS |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 mm |
Key Features
- High-speed two-step, flash analog-to-digital conversion
- 8-bit resolution with a maximum linearity error of 0.2%
- Single supply voltage of 3.3 V
- CMOS technology for low power consumption
- 24-Pin PDIP package suitable for through-hole mounting
- Operating temperature range from -40°C to 70°C
- Moisture sensitivity level of 2A
Applications
The TMC1175AN2C50 is versatile and can be used in various applications requiring high-speed analog-to-digital conversion. Some of the key applications include:
- Data acquisition systems
- Industrial control systems
- Medical devices
- Telecommunication equipment
- Automotive systems
Q & A
- What is the resolution of the TMC1175AN2C50 ADC?
The TMC1175AN2C50 has an 8-bit resolution. - What is the conversion architecture of the TMC1175AN2C50?
The TMC1175AN2C50 uses a two-step, flash conversion architecture. - What is the package type of the TMC1175AN2C50?
The TMC1175AN2C50 comes in a 24-Pin PDIP package. - What is the supply voltage for the TMC1175AN2C50?
The supply voltage for the TMC1175AN2C50 is 3.3 V. - What is the operating temperature range of the TMC1175AN2C50?
The operating temperature range is from -40°C to 70°C. - What technology is used in the TMC1175AN2C50?
The TMC1175AN2C50 uses CMOS technology. - What is the moisture sensitivity level of the TMC1175AN2C50?
The moisture sensitivity level is 2A. - What are some common applications of the TMC1175AN2C50?
Common applications include data acquisition systems, industrial control systems, medical devices, telecommunication equipment, and automotive systems. - Is the TMC1175AN2C50 RoHS compliant?
No specific information is available on RoHS compliance for this part, but it is recommended to check the latest documentation from the manufacturer. - What is the terminal finish of the TMC1175AN2C50?
The terminal finish is Tin/Lead (Sn/Pb).
