Overview

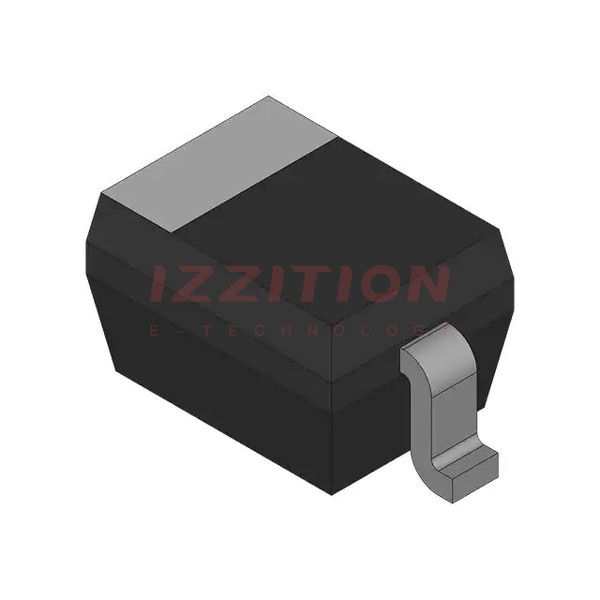

The PDZ5.6B-AU_R1_000A1 is a low-power general purpose Zener diode produced by Panjit International Inc. This component is designed to provide voltage regulation in a variety of electronic circuits. It is housed in a small SOD323 surface mount package, making it suitable for compact and efficient circuit designs.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | PDZ5.6B-AU_R1_000A1 |
| Package | SOD323 |
| Total Power Dissipation (Ptot) | ≤ 400 mW |
| Zener Voltage (Vz) | 5.6 V |
| Zener Current (Iz) | 750 nA (typical) |
| Operating Temperature Range | -65°C to +150°C |
Key Features
- Low-power general purpose Zener diode for voltage regulation.
- Small SOD323 surface mount package suitable for compact designs.
- Total power dissipation of up to 400 mW.
- Zener voltage of 5.6 V, providing stable voltage regulation.
- Wide operating temperature range from -65°C to +150°C.
Applications
- Voltage regulation in electronic circuits.
- Overvoltage protection in various electronic devices.
- Stabilization of voltage in power supplies and DC-DC converters.
- Use in audio and video equipment for noise reduction and voltage stabilization.
- General purpose use in industrial, automotive, and consumer electronics.
Q & A
- What is the PDZ5.6B-AU_R1_000A1 used for?
The PDZ5.6B-AU_R1_000A1 is used for voltage regulation and overvoltage protection in electronic circuits.
- What is the total power dissipation of the PDZ5.6B-AU_R1_000A1?
The total power dissipation is up to 400 mW.
- What is the Zener voltage of the PDZ5.6B-AU_R1_000A1?
The Zener voltage is 5.6 V.
- What package type does the PDZ5.6B-AU_R1_000A1 come in?
The component is housed in a SOD323 surface mount package.
- What is the operating temperature range of the PDZ5.6B-AU_R1_000A1?
The operating temperature range is from -65°C to +150°C.
- Who is the manufacturer of the PDZ5.6B-AU_R1_000A1?
The manufacturer is Panjit International Inc.
- What are some common applications of the PDZ5.6B-AU_R1_000A1?
Common applications include voltage regulation, overvoltage protection, and stabilization in various electronic devices.
- Can the PDZ5.6B-AU_R1_000A1 be used in automotive electronics?
- How do I obtain the datasheet for the PDZ5.6B-AU_R1_000A1?
You can obtain the datasheet from the manufacturer's website or through electronic component distributors like Mouser or Global-IC.
- What is the typical Zener current of the PDZ5.6B-AU_R1_000A1?
The typical Zener current is 750 nA.
