Overview

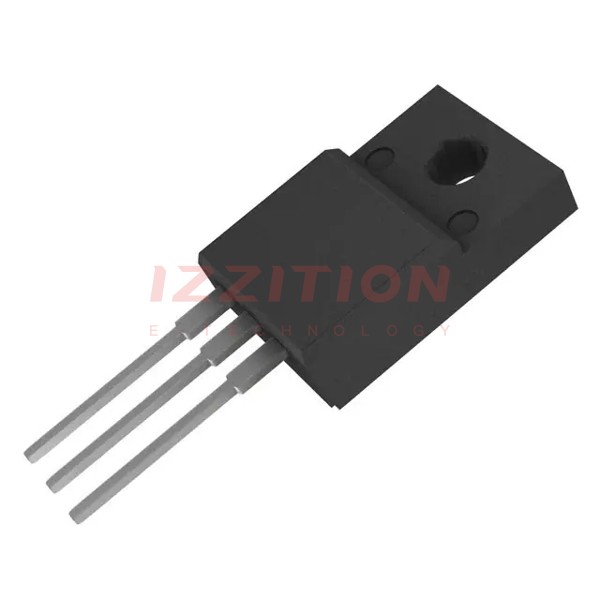

The MBR10100FCT_T0_00001 is a high-performance Schottky diode manufactured by Panjit International Inc. This component is designed for high-current and high-voltage applications, offering excellent efficiency and reliability. The diode is housed in a TO-220AC package, making it suitable for through-hole mounting. It is widely used in various electronic systems requiring efficient rectification and low forward voltage drop.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 100 | V |
| Forward Current (If) (Average) | 10 | A |
| Forward Voltage (Vf) (Max) @ If | 850 mV @ 10 A | |
| Forward Surge Current (Ifsm) (Max) | 150 | A |
| Reverse Current (Ir) @ Vr | 50 µA @ 100 V | |
| Operating Temperature Range | -65°C to +175°C | |
| Package / Case | TO-220AC | |
| Mounting Type | Through Hole |
Key Features
- High average forward current of 10 A, making it suitable for high-power applications.
- Low forward voltage drop of 850 mV at 10 A, reducing power losses and increasing efficiency.
- High repetitive peak reverse voltage of 100 V, ensuring robust performance under various operating conditions.
- Fast recovery characteristics with a forward surge current capability of 150 A.
- Wide operating temperature range from -65°C to +175°C, enhancing reliability in diverse environments.
- TO-220AC package for easy through-hole mounting.
Applications
- DC/DC converters and power supplies due to its high efficiency and low forward voltage drop.
- Freewheeling diodes in motor control and power management systems.
- Polarity protection circuits where high current handling is required.
- High-power rectification in industrial and automotive applications.
Q & A
- What is the maximum repetitive peak reverse voltage of the MBR10100FCT_T0_00001?
The maximum repetitive peak reverse voltage is 100 V. - What is the average forward current rating of this diode?
The average forward current rating is 10 A. - What is the maximum forward voltage drop at 10 A?
The maximum forward voltage drop at 10 A is 850 mV. - What is the forward surge current capability of this diode?
The forward surge current capability is 150 A. - What is the operating temperature range of the MBR10100FCT_T0_00001?
The operating temperature range is from -65°C to +175°C. - What type of package does this diode use?
The diode is housed in a TO-220AC package. - What is the mounting type of this diode?
The mounting type is through-hole. - What are some common applications of this diode?
Common applications include DC/DC converters, freewheeling diodes, polarity protection circuits, and high-power rectification in industrial and automotive systems. - Is the MBR10100FCT_T0_00001 RoHS compliant?
Yes, the diode is RoHS compliant. - What is the reverse current at the maximum reverse voltage?
The reverse current at the maximum reverse voltage is 50 µA.
