Overview

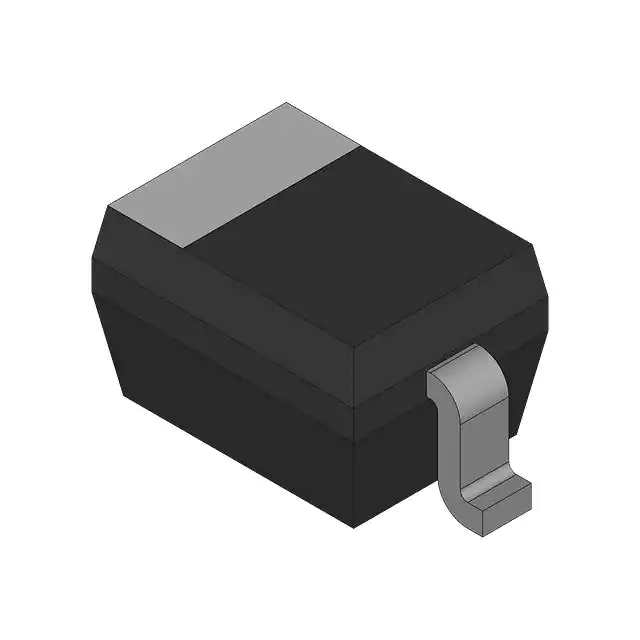

The PDZ33B-AU_R1_000A1 is a low-power, general-purpose Zener diode produced by Panjit International Inc. This component is designed for voltage regulation and is packaged in a small SOD323 (SC-76) surface-mounted device (SMD) plastic package. It is ideally suited for automated assembly processes and is lead-free, complying with EU regulations.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Zener Diode |
| Voltage (V_Z) | 33 V |
| Power Dissipation (P_D) | 400 mW |
| Tolerance | ±2.48% |
| Package | SOD323 (SC-76) |
| Lead Free | Yes, in compliance with EU regulations |
Key Features
- Planar die construction for reliable performance.
- Low power consumption with a power dissipation of 400 mW.
- Ideally suited for automated assembly processes.
- Lead-free, complying with EU regulations.
- Compact SOD323 (SC-76) surface-mounted package.
Applications
The PDZ33B-AU_R1_000A1 Zener diode is versatile and can be used in various applications requiring voltage regulation. These include:
- Voltage stabilization in power supplies and electronic circuits.
- Overvoltage protection in electronic devices.
- Signal clipping and limiting in audio and communication systems.
- Regulation in battery-powered devices.
Q & A
- What is the voltage rating of the PDZ33B-AU_R1_000A1 Zener diode?
The voltage rating is 33 V. - What is the power dissipation of the PDZ33B-AU_R1_000A1?
The power dissipation is 400 mW. - What is the package type of the PDZ33B-AU_R1_000A1?
The package type is SOD323 (SC-76). - Is the PDZ33B-AU_R1_000A1 lead-free?
Yes, it is lead-free and complies with EU regulations. - What are the typical applications of the PDZ33B-AU_R1_000A1?
Typical applications include voltage stabilization, overvoltage protection, signal clipping, and regulation in battery-powered devices. - What is the tolerance of the PDZ33B-AU_R1_000A1 Zener diode?
The tolerance is ±2.48%. - Is the PDZ33B-AU_R1_000A1 suitable for automated assembly processes?
Yes, it is ideally suited for automated assembly processes. - What is the construction type of the PDZ33B-AU_R1_000A1?
The construction type is planar die. - Where can I purchase the PDZ33B-AU_R1_000A1?
You can purchase it from distributors such as Digi-Key, Mouser Electronics, and others. - What are the benefits of using a Zener diode like the PDZ33B-AU_R1_000A1?
The benefits include reliable voltage regulation, low power consumption, and compact packaging.
