Overview

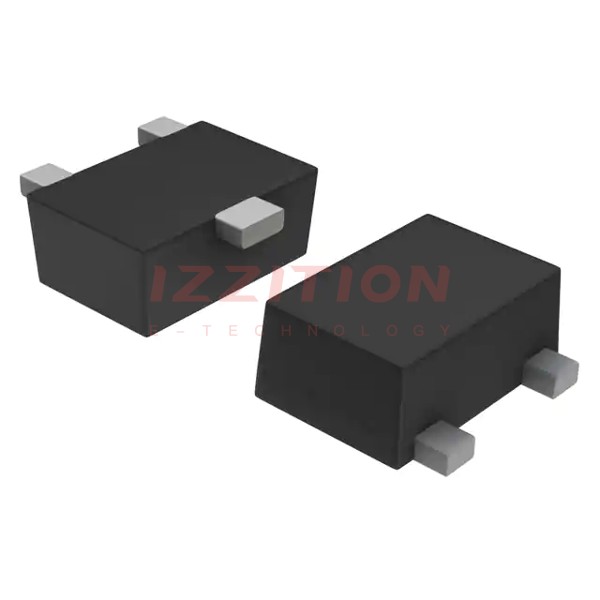

The UESD6.0DT5G is part of the μESD Series from onsemi, designed to protect voltage-sensitive components from electrostatic discharge (ESD) and transient voltage events. This ultra-small ESD suppressor is packaged in a SOT-723-3 case, making it ideal for applications where board space is limited. It offers excellent clamping capability, low leakage, and a fast response time, ensuring robust protection for sensitive electronics.
Key Specifications
| Parameter | Description |
|---|---|
| Part Number | UESD6.0DT5G |
| Manufacturer | onsemi |
| Package/Case | SOT-723-3 |
| Number of Lines | 2 (Dual channel) |
| Direction | Unidirectional |
| VRWM (Working Peak Reverse Voltage) | 6 V |
| VBR (Breakdown Voltage) | 7 V |
| IR (Maximum Reverse Leakage Current) | 0.1 µA |
| C Max (Maximum Capacitance) | 34 pF |
| PPK Max (Peak Power Dissipation) | 31.7 W |
| ESD Rating | Class 3 (> 16 kV) per Human Body Model, 400 V per Machine Model |
| IEC61000-4-2 ESD Protection | Level 4 (30 kV) |
| IEC61000-4-4 EFT Protection | Level 4 (40 A) |
| Operating Temperature Range | -55°C to 150°C |
| RoHS Compliance | Yes |
Key Features
- Ultra-small body outline dimensions: 0.047 x 0.032 inches (1.20 mm x 0.80 mm)
- Low body height: 0.020 inches (0.5 mm)
- Fast response time: Typically < 1 ns
- High ESD protection: Class 3 (> 16 kV) per Human Body Model, 400 V per Machine Model
- IEC61000-4-2 Level 4 ESD Protection (30 kV) and IEC61000-4-4 Level 4 EFT Protection (40 A)
- Pb-Free device
Applications
The UESD6.0DT5G is designed to protect voltage-sensitive components from ESD and transient voltage events, making it ideal for use in:
- Cellular phones
- Portable devices
- Digital cameras
- Power supplies
- Other portable applications where board space is at a premium
Q & A
- What is the primary function of the UESD6.0DT5G?
The UESD6.0DT5G is designed to protect voltage-sensitive components from electrostatic discharge (ESD) and transient voltage events.
- What package type does the UESD6.0DT5G use?
The UESD6.0DT5G is packaged in a SOT-723-3 case.
- What are the key specifications of the UESD6.0DT5G?
Key specifications include VRWM of 6 V, VBR of 7 V, IR of 0.1 µA, and C Max of 34 pF.
- What is the ESD rating of the UESD6.0DT5G?
The UESD6.0DT5G has an ESD rating of Class 3 (> 16 kV) per Human Body Model and 400 V per Machine Model.
- Is the UESD6.0DT5G RoHS compliant?
- What is the operating temperature range of the UESD6.0DT5G?
The operating temperature range is -55°C to 150°C.
- What are some typical applications for the UESD6.0DT5G?
Typical applications include cellular phones, portable devices, digital cameras, power supplies, and other portable electronics.
- What is the response time of the UESD6.0DT5G?
The response time is typically less than 1 ns.
- Is the UESD6.0DT5G a Pb-Free device?
- What is the peak power dissipation of the UESD6.0DT5G?
The peak power dissipation is 31.7 W.
