Overview

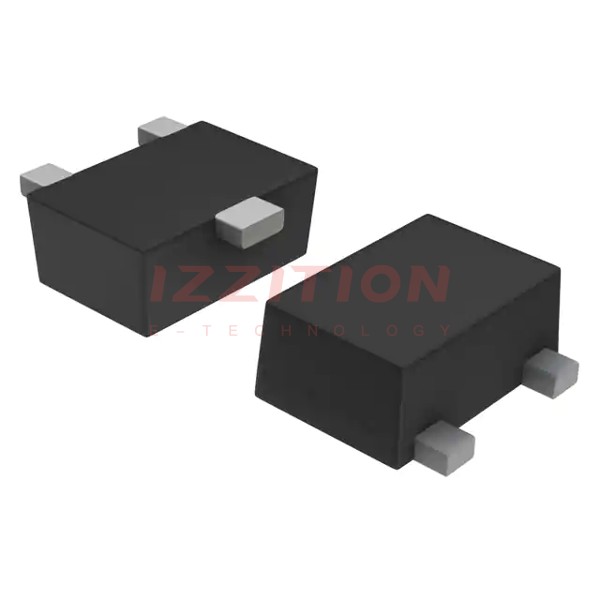

The UESD5.0DT5G is an ESD (Electrostatic Discharge) protection diode manufactured by onsemi. This component is designed to protect voltage-sensitive components from ESD events, ensuring the reliability and longevity of electronic devices. The diode is packaged in an ultra-small SOT-723 package, making it ideal for space-constrained designs. It is also compliant with RoHS and has a flammability rating of UL94V-0, ensuring it meets stringent safety standards.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | SOT-723 |
| ESD Protection Voltage | 5.0 V |
| Clamping Voltage | Typically 6.5 V at 1 A |
| Leakage Current | Typically 1 nA at 5 V |
| Response Time | Fast response time |
| Flammability Rating | UL94V-0 |
| RoHS Compliance | Yes |
| Moisture Sensitivity Level | MSL-1 |
Key Features
- Excellent clamping capability to protect against ESD events.
- Low leakage current to minimize power consumption.
- Fast response time to quickly mitigate ESD threats.
- Ultra-small SOT-723 package for compact designs.
- RoHS compliant and UL94V-0 flammability rated for safety.
- PPAP capable and MSL-1 standard for reliability.
Applications
The UESD5.0DT5G ESD protection diode is suitable for a variety of applications where protection against electrostatic discharge is crucial. These include:
- Portable electronics such as smartphones and tablets.
- Consumer electronics like TVs and audio equipment.
- Automotive electronics requiring robust ESD protection.
- Industrial control systems and IoT devices.
Q & A
- What is the primary function of the UESD5.0DT5G? The primary function is to protect voltage-sensitive components from electrostatic discharge (ESD) events.
- What package type does the UESD5.0DT5G use? It uses the ultra-small SOT-723 package.
- Is the UESD5.0DT5G RoHS compliant? Yes, it is RoHS compliant.
- What is the flammability rating of the UESD5.0DT5G? It has a flammability rating of UL94V-0.
- What is the typical clamping voltage of the UESD5.0DT5G? The typical clamping voltage is 6.5 V at 1 A.
- What is the moisture sensitivity level of the UESD5.0DT5G? It has a moisture sensitivity level of MSL-1.
- What are some common applications for the UESD5.0DT5G? Common applications include portable electronics, consumer electronics, automotive electronics, and industrial control systems.
- Does the UESD5.0DT5G have fast response time? Yes, it has a fast response time to mitigate ESD threats quickly.
- Is the UESD5.0DT5G PPAP capable? Yes, it is PPAP capable.
- What is the typical leakage current of the UESD5.0DT5G? The typical leakage current is 1 nA at 5 V.
