Overview
The SZESD7205WTT1G is a low capacitance ESD protection diode designed by onsemi to protect high-speed data lines from electrostatic discharge (ESD). This device is particularly suited for applications requiring ultra-low capacitance and low ESD clamping voltage, making it an ideal solution for protecting voltage-sensitive high-speed data lines. The small form factor and flow-through style package facilitate easy PCB layout and maintain consistent impedance between high-speed differential lines such as Ethernet and LVDS, commonly found in automotive camera modules.
Key Specifications
Parameter | Symbol | Conditions | Min | Typ | Max | Unit |
---|---|---|---|---|---|---|
Operating Junction Temperature Range | TJ | -55 | 125 | °C | ||
Storage Temperature Range | Tstg | -55 | 150 | °C | ||
Lead Solder Temperature - Maximum (10 Seconds) | TL | 260 | °C | |||
Reverse Working Voltage | VRWM | I/O Pin to GND | 5.0 | V | ||
Breakdown Voltage | VBR | IT = 1 mA, I/O Pin to GND | 5.2 | 6.0 | 8.0 | V |
Reverse Leakage Current | IR | VRWM = 5.0 V, I/O Pin to GND | 1 | μA | ||
Clamping Voltage TLP | VC | IPP = 16 A | 12.5 | V | ||
Junction Capacitance | CJ | VR = 0 V, f = 1 MHz between I/O Pins and GND | 0.34 | 0.47 | 0.55 | pF |
3dB Bandwidth | fBW | RL = 50 Ω | 5 | GHz |
Key Features
- Ultra-low capacitance (0.4 pF typical, I/O to GND)
- Diode capacitance matching
- Protection for IEC 61000-4-2 Level 4 (ESD)
- Low ESD clamping voltage (12 V typical, +16 A TLP, I/O to GND)
- SZ prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable
- Pb-free and RoHS compliant
- Small form factor, flow-through style package for easy PCB layout and matched trace lengths
- High 3dB bandwidth (5 GHz)
Applications
- 100BASE-T1 / OPEN Alliance BroadR-Reach Automotive Ethernet
- 10/100/1000BASE-T Ethernet
- LVDS (Low Voltage Differential Signaling)
- Automotive USB 2.0
- High-speed differential pairs
Q & A
- What is the primary function of the SZESD7205WTT1G?
The primary function of the SZESD7205WTT1G is to protect high-speed data lines from electrostatic discharge (ESD).
- What are the key features of the SZESD7205WTT1G?
The key features include ultra-low capacitance, diode capacitance matching, low ESD clamping voltage, and compliance with IEC 61000-4-2 Level 4 (ESD) standards.
- What are the typical applications for the SZESD7205WTT1G?
Typical applications include 100BASE-T1 / OPEN Alliance BroadR-Reach Automotive Ethernet, 10/100/1000BASE-T Ethernet, LVDS, Automotive USB 2.0, and high-speed differential pairs.
- What is the operating junction temperature range for the SZESD7205WTT1G?
The operating junction temperature range is -55°C to +125°C.
- Is the SZESD7205WTT1G Pb-free and RoHS compliant?
- What is the 3dB bandwidth of the SZESD7205WTT1G?
The 3dB bandwidth is 5 GHz.
- What package types are available for the SZESD7205WTT1G?

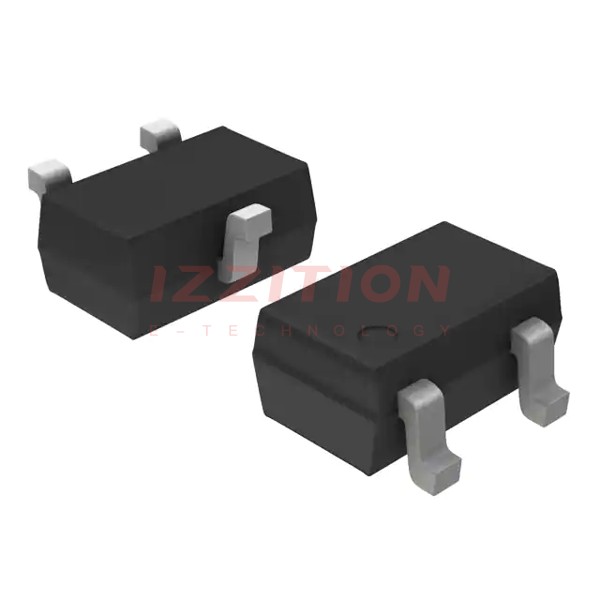

The device is available in SOT-323 (SC-70) packages.
- Is the SZESD7205WTT1G qualified for automotive applications?
- What is the typical clamping voltage for the SZESD7205WTT1G?
The typical clamping voltage is 12.5 V at IPP = 16 A.
- How does the flow-through style package benefit PCB layout?
The flow-through style package allows for easy PCB layout and maintains consistent impedance between high-speed differential lines.
