Overview

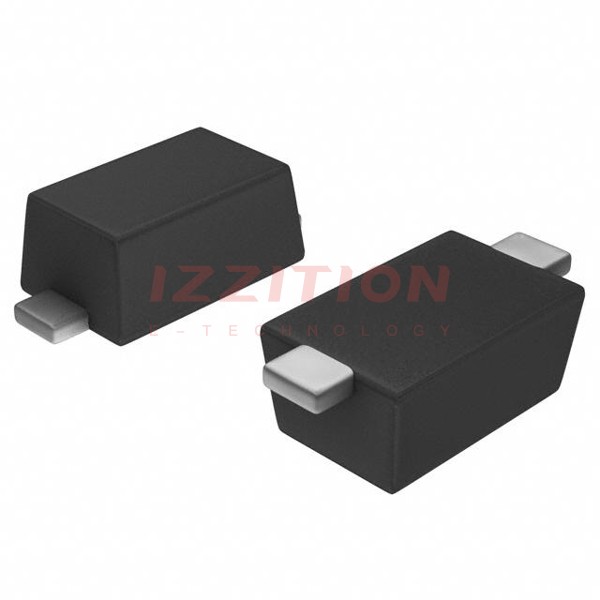

The SS14FL is a surface mount Schottky barrier rectifier produced by onsemi. This component is designed for high-efficiency rectification in various electronic applications. It features an ultra-thin profile, making it suitable for space-constrained designs. The SS14FL is part of onsemi's lineup of Schottky diodes, known for their low forward voltage drop and fast switching times.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Peak Reverse Voltage (VRRM) | 40 | V |
| Average Rectified Current (IF(AV)) at TA = 75°C | 1.0 | A |
| Non-Repetitive Peak Forward Surge Current (IFSM) | 40 | A |
| Operating Junction Temperature Range (TJ) | -55 to +125 | °C |
| Storage Temperature Range (TSTG) | -55 to +125 | °C |
| Forward Voltage (VF) at IF = 1.0 A | 0.55 | V |
| Reverse Leakage Current (IR) at VR = VRRM | 30 | μA |
| Reverse Recovery Time (Trr) | 5.695 | ns |
| Junction Capacitance (CJ) at VR = 0 | 60 | pF |
Key Features
- Ultra Thin Profile: Maximum height of 1.08 mm, making it ideal for space-constrained applications.
- UL Flammability 94V-0 Classification.
- MSL 1 (Moisture Sensitivity Level).
- Green Mold Compound: Pb-free, Halogen-free, and RoHS compliant.
- Fast Switching Times: Low reverse recovery time of 5.695 ns.
- Low Forward Voltage Drop: VF = 0.55 V at IF = 1.0 A.
Applications
The SS14FL is suitable for a variety of applications, including:
- Power Supplies: Due to its high efficiency and low forward voltage drop, it is ideal for rectification in power supply circuits.
- Switching Regulators: Its fast switching times make it a good choice for high-frequency switching regulators.
- Automotive Systems: The component's robust temperature range and reliability make it suitable for automotive applications.
- Consumer Electronics: Used in various consumer electronic devices where high-efficiency rectification is required.
Q & A
- What is the peak reverse voltage of the SS14FL?
The peak reverse voltage (VRRM) of the SS14FL is 40 V. - What is the average rectified current of the SS14FL at 75°C?
The average rectified current (IF(AV)) at 75°C is 1.0 A. - What is the non-repetitive peak forward surge current of the SS14FL?
The non-repetitive peak forward surge current (IFSM) is 40 A. - What is the operating junction temperature range of the SS14FL?
The operating junction temperature range (TJ) is -55 to +125°C. - Is the SS14FL RoHS compliant?
Yes, the SS14FL is Pb-free, Halogen-free, and RoHS compliant. - What is the forward voltage drop of the SS14FL at 1.0 A?
The forward voltage drop (VF) at IF = 1.0 A is 0.55 V. - What is the reverse recovery time of the SS14FL?
The reverse recovery time (Trr) is 5.695 ns. - What is the junction capacitance of the SS14FL at VR = 0?
The junction capacitance (CJ) at VR = 0 is 60 pF. - What is the moisture sensitivity level (MSL) of the SS14FL?
The MSL of the SS14FL is 1. - What are some common applications of the SS14FL?
The SS14FL is commonly used in power supplies, switching regulators, automotive systems, and consumer electronics.
