Overview

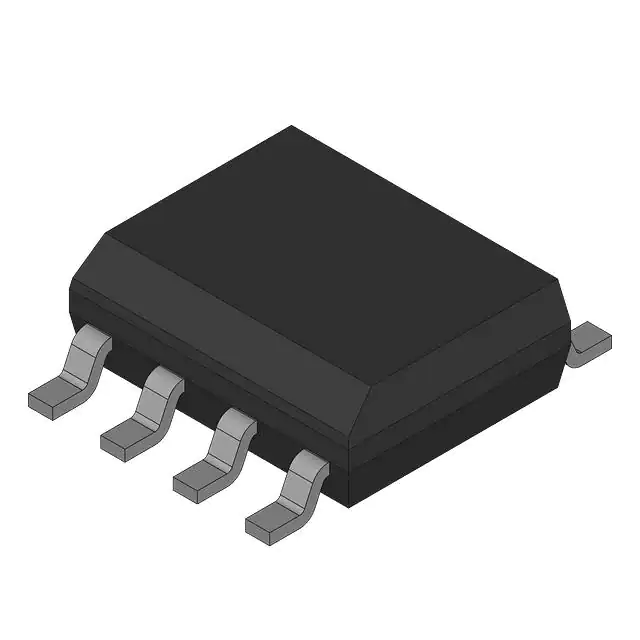

The SMDA24CDR2G is a bi-directional Transient Voltage Suppressor (TVS) array designed by onsemi for high-speed data line protection. This component is part of the circuit protection category and is specifically engineered to safeguard electronic systems from voltage transients and electrostatic discharges (ESD). The SMDA24CDR2G is particularly useful in applications where high reliability and robust protection against transient voltages are crucial.
Key Specifications
| Parameter | Value |
|---|---|
| Peak Pulse Current (Ipp) | 5 A |
| Peak Pulse Power Dissipation (Pppm) | 300 W |
| Diode Capacitance (Cd) | 50 pF |
| Voltage ESD Contact (Vesd) | 8 kV |
| Reverse Standoff Voltage (Typ) | 24V |
| Breakdown Voltage (Min) | 26.7V |
| Clamping Voltage (Max) @ Ipp | 55V |
| Number of Channels | 4 (Bidirectional) |
Key Features
- Bidirectional TVS array providing protection for high-speed data lines.
- High peak pulse current capability of 5 A.
- Peak pulse power dissipation of 300 W.
- Low diode capacitance of 50 pF, suitable for high-speed applications.
- ESD protection up to 8 kV.
- Compact SMD package for space-efficient designs.
Applications
The SMDA24CDR2G is ideal for various applications requiring robust transient voltage suppression and ESD protection, including:
- High-speed data lines (e.g., USB, HDMI, Ethernet).
- Telecommunication systems.
- Industrial control systems.
- Automotive electronics.
- Consumer electronics.
Q & A
- What is the primary function of the SMDA24CDR2G?
The primary function of the SMDA24CDR2G is to provide transient voltage suppression and ESD protection for high-speed data lines. - How many channels does the SMDA24CDR2G have?
The SMDA24CDR2G has 4 bidirectional channels. - What is the peak pulse current rating of the SMDA24CDR2G?
The peak pulse current rating is 5 A. - What is the maximum clamping voltage at the peak pulse current?
The maximum clamping voltage at the peak pulse current is 55V. - What is the ESD protection rating of the SMDA24CDR2G?
The ESD protection rating is up to 8 kV. - What is the typical reverse standoff voltage of the SMDA24CDR2G?
The typical reverse standoff voltage is 24V. - What is the minimum breakdown voltage of the SMDA24CDR2G?
The minimum breakdown voltage is 26.7V. - What type of applications is the SMDA24CDR2G suitable for?
The SMDA24CDR2G is suitable for high-speed data lines, telecommunication systems, industrial control systems, automotive electronics, and consumer electronics. - What is the diode capacitance of the SMDA24CDR2G?
The diode capacitance is 50 pF. - Why is the SMDA24CDR2G preferred in high-speed applications?
The SMDA24CDR2G is preferred in high-speed applications due to its low diode capacitance and high peak pulse current capability.
