RHRG5060-F085
  • Share:

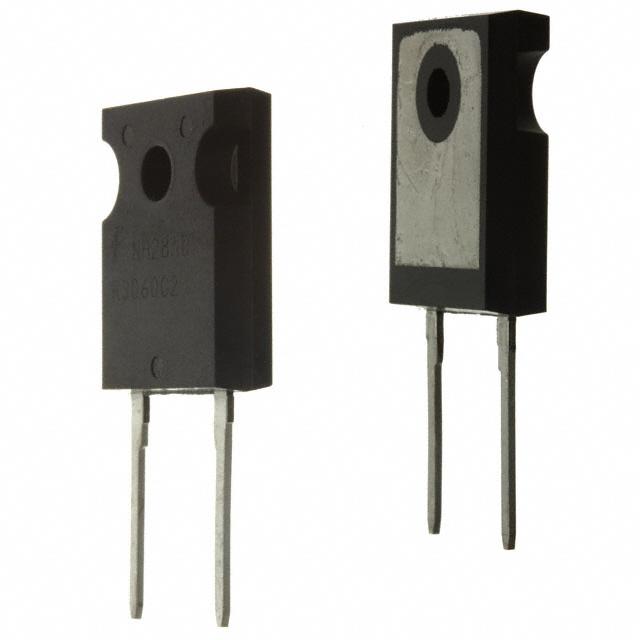

onsemi RHRG5060-F085

Manufacturer No:
RHRG5060-F085
Manufacturer:
onsemi
Package:
Tube
Description:
DIODE GEN PURP 600V 50A TO247
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The RHRG5060-F085 is a hyperfast rectifier diode produced by onsemi, formerly known as Fairchild Semiconductor. This device is characterized by its high-speed switching capabilities and soft recovery characteristics, making it ideal for various power switching applications. The diode features a silicon nitride passivated ion-implanted epitaxial planar construction, which enhances its performance and reliability.

Designed for use in automotive and general-purpose power supplies, the RHRG5060-F085 offers low stored charge and minimized ringing and electrical noise in power switching circuits. This reduces power loss in the switching transistors, ensuring efficient operation.

Key Specifications

Rating Symbol Value Unit
Peak Repetitive Reverse Voltage VRRM 600 V
Working Peak Reverse Voltage VRWM 600 V
DC Blocking Voltage VR 600 V
Average Rectified Forward Current @ TC = 25°C IF(AV) 50 A
Non-repetitive Peak Surge Current (Halfwave 1 Phase 50 Hz) IFSM 150 A
Avalanche Energy (1.4 A, 40 mH) EAVL 40 mJ
Operating Junction and Storage Temperature TJ, TSTG -55 to +175 °C
Reverse Recovery Time @ IF = 50 A, di/dt = 100 A/μs, VCC = 390 V trr 45 ns
Forward Voltage @ IF = 50 A VFM 1.67 V
Thermal Resistance, Junction-to-Case RθJC 0.42 °C/W
Thermal Resistance, Junction-to-Ambient RθJA 45 °C/W

Key Features

  • High Speed Switching: Reverse recovery time (trr) of less than 45 ns, which is half the recovery time of ultrafast diodes.
  • Low Forward Voltage: Typical forward voltage (VF) of 1.67 V at 50 A.
  • Avalanche Energy Rated: Capable of withstanding avalanche energy of 40 mJ.
  • AEC-Q101 Qualified: Meets the Automotive Electronics Council’s Q101 standard for reliability and performance in automotive applications.
  • Pb-Free: Lead-free construction, making it compliant with environmental regulations.

Applications

  • Switching Power Supplies: Ideal for use in various switching power supplies due to its high-speed switching and low stored charge characteristics.
  • Power Switching Circuits: Suitable for power switching circuits in automotive and general-purpose applications.
  • Automotive Applications: Designed for use in automotive power supplies and other power switching applications.
  • General Purpose Rectification: Can be used in general-purpose rectification applications requiring high-speed and low noise operation.

Q & A

  1. What is the peak repetitive reverse voltage of the RHRG5060-F085?

    The peak repetitive reverse voltage (VRRM) is 600 V.

  2. What is the typical forward voltage of the RHRG5060-F085 at 50 A?

    The typical forward voltage (VF) at 50 A is 1.67 V.

  3. What is the reverse recovery time of the RHRG5060-F085?

    The reverse recovery time (trr) is less than 45 ns at IF = 50 A and di/dt = 100 A/μs.

  4. Is the RHRG5060-F085 AEC-Q101 qualified?

    Yes, the RHRG5060-F085 is AEC-Q101 qualified, making it suitable for automotive applications.

  5. What is the operating junction and storage temperature range of the RHRG5060-F085?

    The operating junction and storage temperature range is -55°C to +175°C.

  6. What is the thermal resistance, junction-to-case of the RHRG5060-F085?

    The thermal resistance, junction-to-case (RθJC) is 0.42°C/W.

  7. What is the avalanche energy rating of the RHRG5060-F085?

    The avalanche energy rating (EAVL) is 40 mJ.

  8. What is the package type of the RHRG5060-F085?

    The package type is TO-247-2L.

  9. Is the RHRG5060-F085 lead-free?

    Yes, the RHRG5060-F085 is lead-free (Pb-Free).

  10. What are the typical applications of the RHRG5060-F085?

    The RHRG5060-F085 is typically used in switching power supplies, power switching circuits, and general-purpose rectification in automotive and other applications).

Product Attributes

Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):600 V
Current - Average Rectified (Io):50A
Voltage - Forward (Vf) (Max) @ If:2.1 V @ 50 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):60 ns
Current - Reverse Leakage @ Vr:250 µA @ 600 V
Capacitance @ Vr, F:-
Mounting Type:Through Hole
Package / Case:TO-247-2
Supplier Device Package:TO-247-2
Operating Temperature - Junction:-55°C ~ 175°C
0 Remaining View Similar

In Stock

$6.54
20

Please send RFQ , we will respond immediately.

Similar Products

Part Number RHRG5060-F085 RHRG3060-F085
Manufacturer onsemi onsemi
Product Status Active Active
Diode Type Standard Standard
Voltage - DC Reverse (Vr) (Max) 600 V 600 V
Current - Average Rectified (Io) 50A 30A
Voltage - Forward (Vf) (Max) @ If 2.1 V @ 50 A 2.1 V @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 60 ns 45 ns
Current - Reverse Leakage @ Vr 250 µA @ 600 V 250 µA @ 600 V
Capacitance @ Vr, F - -
Mounting Type Through Hole Through Hole
Package / Case TO-247-2 TO-247-2
Supplier Device Package TO-247-2 TO-247-2
Operating Temperature - Junction -55°C ~ 175°C -55°C ~ 175°C
