Overview
The NZQA6V8AXV5T1G is an ESD protection diode manufactured by onsemi, designed to provide transient overvoltage protection in sensitive electronic equipment. This integrated surge protection device is ideal for applications where board space is limited, offering effective and reliable protection for four separate lines within a single package.
It is suitable for use in various devices such as computers, printers, business machines, communication systems, medical equipment, and other sensitive electronic applications. The device complies with industry standards for ESD protection, including IEC61000-4-2 and MIL-STD-883C.
Key Specifications
| Parameter | Symbol | Typical Value | Maximum Value |
|---|---|---|---|
| Breakdown Voltage @ 1 mA | VBR | 6.47 V | 7.14 V |
| Working Peak Reverse Voltage | VRWM | 4.3 V | |
| Maximum Reverse Leakage Current @ VRWM | IR | 1.0 μA | |
| Clamping Voltage @ IPP | VC | 9.5 V | |
| Maximum Reverse Peak Pulse Current | IPP | 15 A | |
| Forward Voltage @ IF | VF | 1.2 V | |
| Package Type | SOT-553 | ||
| Number of Channels | 4 |
Key Features
- Low Clamping Voltage to protect sensitive circuitry during ESD events.

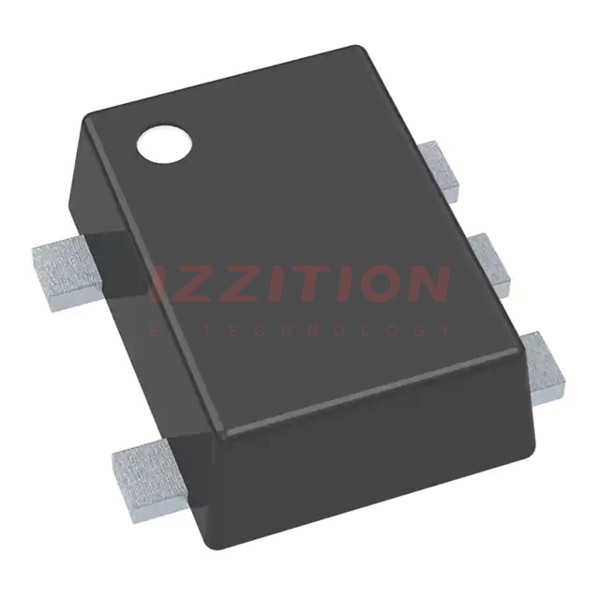

- Small SOT-553 SMT package, ideal for space-constrained designs.
- Provides protection for four separate lines, enhancing reliability and efficiency.
- Complies with IEC61000-4-2: Level 4 ESD protection and MIL-STD-883C: Class 3.
- Low Leakage Current to minimize power consumption.
- Pb-Free device, adhering to environmental standards.
- Meets USB 1.1 Low Speed & Full Speed specifications.
Applications
The NZQA6V8AXV5T1G is designed for use in a variety of sensitive electronic equipment, including:
- Computers and peripherals.
- Printers and business machines.
- Communication systems.
- Medical equipment.
- Other applications requiring transient overvoltage protection.
Q & A
- What is the primary function of the NZQA6V8AXV5T1G?
The primary function is to provide transient overvoltage protection in sensitive electronic equipment.
- What are the key industry standards this device complies with?
It complies with IEC61000-4-2: Level 4 ESD protection and MIL-STD-883C: Class 3.
- What is the package type of the NZQA6V8AXV5T1G?
The package type is SOT-553.
- How many channels does the NZQA6V8AXV5T1G protect?
It protects four separate channels.
- What is the typical breakdown voltage of the NZQA6V8AXV5T1G?
The typical breakdown voltage is 6.47 V.
- Is the NZQA6V8AXV5T1G Pb-Free?
- What are some common applications for this device?
- What is the maximum reverse peak pulse current (IPP) the device can handle?
The maximum IPP is 15 A.
- What is the clamping voltage at the maximum IPP?
The clamping voltage at the maximum IPP is 9.5 V.
- Does the device meet USB specifications?
