Overview

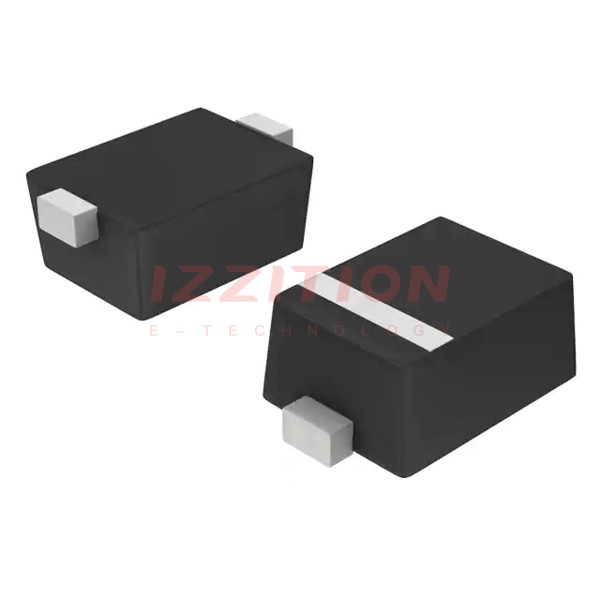

The NZ9F6V8ST5G is a Zener diode voltage regulator produced by onsemi, designed to provide voltage regulation and protection in compact, space-constrained applications. This device is packaged in a SOD-923 surface mount package, making it ideal for use in cellular phones, handheld portables, and high-density PC boards. The NZ9F6V8ST5G is part of the NZ9F series, which offers a range of Zener breakdown voltages to suit various application needs.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Zener Breakdown Voltage (VZ) | 6.8 | V |
| Steady State Power Rating (P Max) | 0.25 | W |
| Package Type | SOD-923 | - |
| Body Outline Dimensions | 0.039" x 0.024" (1.00 mm x 0.60 mm) | - |
| Body Height | 0.016" (0.40 mm) | - |
| ESD Rating | Class 3 (>16 kV) per Human Body Model | - |
| Reverse Current (IR) at VR | 0.5 μA (Max) | μA |
| Maximum Zener Impedance (ZZT) at IZT | 100 Ω (Max) | Ω |
| Temperature Coefficient of VZ (dVZ/dT) | -3.5 mV/K | mV/K |
| Capacitance at VR = 0 and f = 1 MHz | 210 pF (Max) | pF |
Key Features
- Voltage Regulation: Provides stable voltage regulation with a tight tolerance VZ.
- Compact Package: SOD-923 surface mount package, ideal for space-constrained applications.
- High ESD Rating: Class 3 (>16 kV) per Human Body Model, ensuring robust protection against electrostatic discharge.
- Low Profile: Small body outline dimensions and low body height make it suitable for high-density PCBs.
- Automotive Grade: SZ prefix models are AEC-Q101 qualified and PPAP capable, suitable for automotive and other demanding applications.
Applications
- Cellular Phones: Ideal for voltage regulation in mobile devices.
- Handheld Portables: Suitable for use in portable electronic devices where space is limited.
- High-Density PC Boards: Used in high-density PCB applications requiring compact voltage regulation solutions.
- MOSFET Gate Protection: Can be used to protect MOSFET gates from voltage spikes.
- Waveform Clipping: Useful in applications requiring waveform clipping and voltage regulation.
Q & A
- What is the Zener breakdown voltage of the NZ9F6V8ST5G?
The Zener breakdown voltage (VZ) of the NZ9F6V8ST5G is 6.8 V.
- What is the steady state power rating of this device?
The steady state power rating (P Max) is 0.25 W.
- What package type is used for the NZ9F6V8ST5G?
The device is packaged in a SOD-923 surface mount package.
- What are the body outline dimensions of the NZ9F6V8ST5G?
The body outline dimensions are 0.039" x 0.024" (1.00 mm x 0.60 mm).
- What is the ESD rating of this device?
The ESD rating is Class 3 (>16 kV) per Human Body Model.
- Is the NZ9F6V8ST5G suitable for automotive applications?
Yes, the SZ prefix models are AEC-Q101 qualified and PPAP capable, making them suitable for automotive and other demanding applications.
- What is the maximum reverse current (IR) at VR for this device?
The maximum reverse current (IR) at VR is 0.5 μA.
- What is the maximum Zener impedance (ZZT) at IZT for this device?
The maximum Zener impedance (ZZT) at IZT is 100 Ω.
- What is the temperature coefficient of VZ (dVZ/dT) for the NZ9F6V8ST5G?
The temperature coefficient of VZ (dVZ/dT) is -3.5 mV/K.
- What is the capacitance at VR = 0 and f = 1 MHz for this device?
The capacitance at VR = 0 and f = 1 MHz is 210 pF (Max).
