Overview

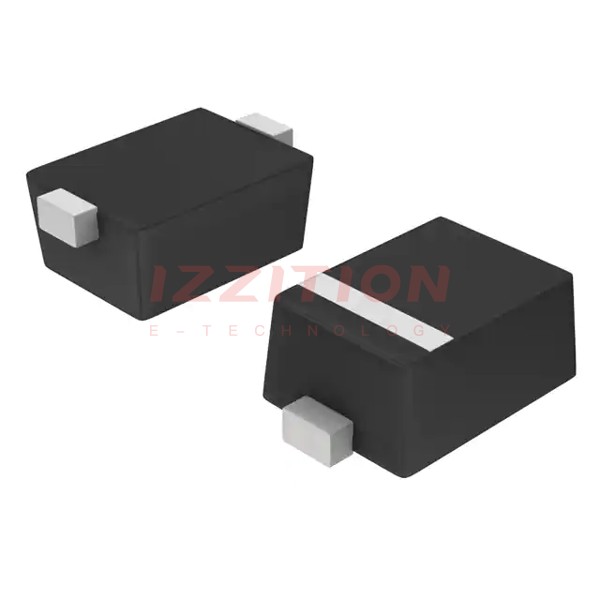

The NZ9F3V9ST5G is a Zener diode voltage regulator produced by onsemi, designed to provide voltage regulation and protection in various electronic applications. This component is packaged in a compact SOD-923 surface mount package, making it ideal for situations where space is limited. It is particularly well-suited for use in cellular phones, handheld portables, and high-density PC boards.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Standard Zener Breakdown Voltage | 3.9 - 4.16 | V |
| Steady State Power Rating | 250 | mW |
| Body Outline Dimensions | 0.039" x 0.024" (1.00 mm x 0.60 mm) | |
| Body Height | 0.016" (0.40 mm) | |
| ESD Rating | Class 3 (>16 kV) per Human Body Model | |
| Maximum Junction and Storage Temperature Range | -65 to +150 | °C |
| Thermal Resistance from Junction-to-Ambient | 500 | °C/W |
| Lead Finish | 100% Matte Sn (Tin) | |
| Package Material | ||
| UL Rating | UL 94, V-0 |
Key Features
- Tight tolerance VZ for precise voltage regulation.
- Pb-Free devices, ensuring environmental compliance.
- SZ prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable.
- Low body height and small body outline dimensions, making it suitable for high-density applications.
- High ESD rating of Class 3 (>16 kV) per Human Body Model.
Applications
- Cellular phones and other handheld portable devices.
- High-density PC boards and other compact electronic systems.
- Voltage regulation and waveform clipping in various electronic circuits.
- MOSFET gate protection.
- General usage in a wide range of end products requiring voltage regulation.
Q & A
- What is the NZ9F3V9ST5G used for?
The NZ9F3V9ST5G is used for voltage regulation and protection in electronic circuits, particularly in applications where space is limited.
- What is the standard Zener breakdown voltage range of the NZ9F3V9ST5G?
The standard Zener breakdown voltage range of the NZ9F3V9ST5G is 3.9 to 4.16 volts.
- What is the steady state power rating of the NZ9F3V9ST5G?
The steady state power rating of the NZ9F3V9ST5G is 250 mW.
- What are the body outline dimensions of the NZ9F3V9ST5G?
The body outline dimensions are 0.039" x 0.024" (1.00 mm x 0.60 mm).
- What is the ESD rating of the NZ9F3V9ST5G?
The ESD rating is Class 3 (>16 kV) per Human Body Model.
- Is the NZ9F3V9ST5G Pb-Free?
Yes, the NZ9F3V9ST5G is a Pb-Free device.
- What is the thermal resistance from junction-to-ambient for the NZ9F3V9ST5G?
The thermal resistance from junction-to-ambient is 500 °C/W.
- What are some common applications of the NZ9F3V9ST5G?
Common applications include cellular phones, handheld portables, and high-density PC boards.
- Is the NZ9F3V9ST5G suitable for automotive applications?
Yes, the NZ9F3V9ST5G is AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other applications requiring unique site and control change requirements.
- What is the maximum junction and storage temperature range for the NZ9F3V9ST5G?
The maximum junction and storage temperature range is -65 to +150 °C.
