Overview

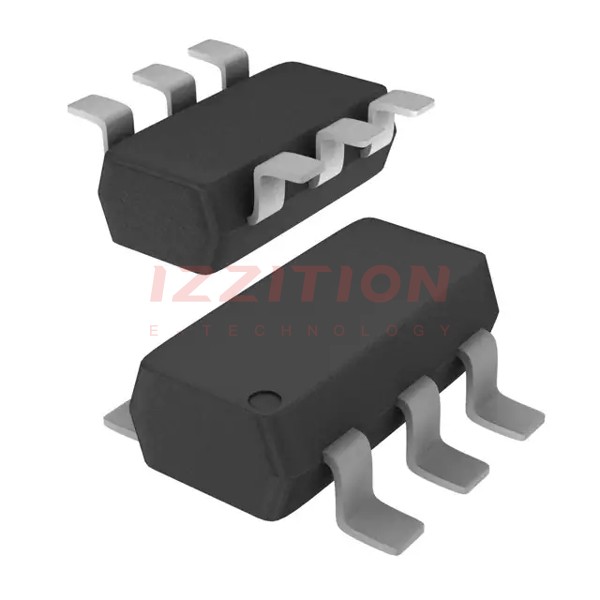

The NSVBAS21TMR6T2G is a high-voltage switching diode produced by onsemi. This device is housed in a SC-74 surface mount package and is designed for low-power surface mount applications where board space is limited. It features three high-voltage switching diodes, making it ideal for applications requiring compact and efficient diode solutions.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Reverse Voltage | VR | 250 | Vdc |
| Forward Current | IF | 200 | mAdc |
| Peak Forward Surge Current | IFM(surge) | 625 | mAdc |
| Total Device Dissipation (FR-5 Board, TA = 25°C) | PD | 311 | mW |
| Thermal Resistance, Junction-to-Ambient (FR-5 Board) | RJA | 402 | °C/W |
| Junction and Storage Temperature | TJ, Tstg | -55 to +150 | °C |
| Reverse Voltage Leakage Current (VR = 200 Vdc, TJ = 150°C) | IR | 0.1 to 100 | μAdc |
| Forward Voltage (IF = 100 mAdc) | VF | 1.0 to 1.25 | Vdc |
| Diode Capacitance (VR = 0, f = 1.0 MHz) | CD | 5.0 | pF |
| Reverse Recovery Time | trr | 50 | ns |
Key Features
- Reduces board space due to its compact SC-74 surface mount package.
- NSV prefix indicates AEC-Q101 qualification and PPAP capability, making it suitable for automotive and other applications requiring unique site and control change requirements.
- Pb-Free, Halogen Free/BFR Free, and RoHS compliant.
Applications
The NSVBAS21TMR6T2G is suitable for various low-power surface mount applications, including:
- Automotive systems requiring high reliability and compliance with automotive standards.
- Consumer electronics where space is limited and high-voltage switching is necessary.
- Industrial control systems that need compact and efficient diode solutions.
- General-purpose switching applications in electronic devices.
Q & A
- What is the maximum reverse voltage rating of the NSVBAS21TMR6T2G?
The maximum reverse voltage rating is 250 Vdc.
- What is the forward current rating of the NSVBAS21TMR6T2G?
The forward current rating is 200 mAdc.
- What is the peak forward surge current rating of the NSVBAS21TMR6T2G?
The peak forward surge current rating is 625 mAdc.
- Is the NSVBAS21TMR6T2G RoHS compliant?
- What is the junction and storage temperature range of the NSVBAS21TMR6T2G?
The junction and storage temperature range is -55°C to +150°C.
- What is the thermal resistance, junction-to-ambient, for the NSVBAS21TMR6T2G on an FR-5 board?
The thermal resistance, junction-to-ambient, is 402°C/W.
- What is the reverse recovery time of the NSVBAS21TMR6T2G?
The reverse recovery time is 50 ns.
- Is the NSVBAS21TMR6T2G suitable for automotive applications?
- What package type does the NSVBAS21TMR6T2G come in?
The NSVBAS21TMR6T2G comes in a SC-74 surface mount package.
- How many diodes are housed in the NSVBAS21TMR6T2G package?
The package houses three high-voltage switching diodes.
