Overview

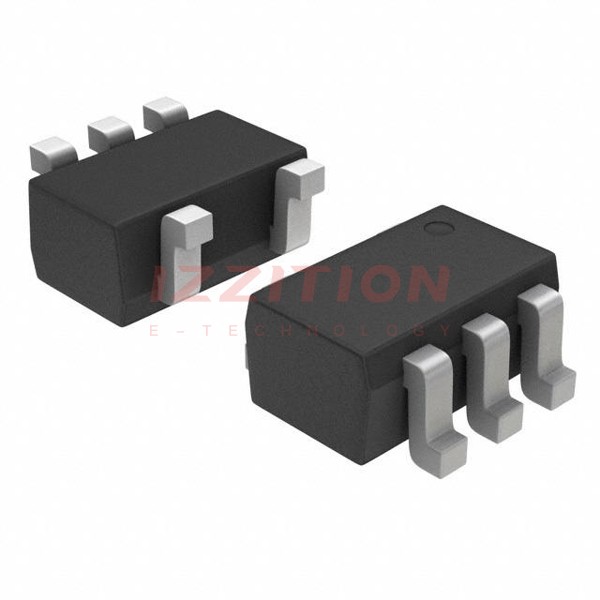

The onsemi NSQA6V8AW5T2G is a unidirectional Transient Voltage Suppressor (TVS) diode designed to protect electronic circuits from voltage transients and spikes. This component is part of the NSQA6V8AW5T2 series and is packaged in the SOT-353 (SC-88A, SC-70-5) surface mount package. It is known for its high reliability and compliance with various industry standards, making it a robust solution for circuit protection in a wide range of applications.
Key Specifications
| Attribute | Value |
|---|---|
| Breakdown Voltage (Min) | 6.4V |
| Breakdown Voltage (Max) | 7.1V |
| Clamping Voltage (Max) @ Ipp | 13V |
| Directional | Uni-Directional |
| Power Dissipation | 20W |
| Peak Output Current | 1.6A (8/20µs) |
| Reverse Leakage Current | 1µA |
| Standoff Voltage | 5V |
| Operating Temperature Range | -40°C to +125°C |
| Storage Temperature Range | -55°C to +150°C |
| Capacitance | 15pF |
| Package Style | SOT-353 (SC-88A, SC-70-5) |
| Mounting Method | Surface Mount |
Key Features
- High Peak Pulse Current Capability: The NSQA6V8AW5T2G can handle a peak pulse current of 1.6A (8/20µs), making it suitable for protecting against high-energy transients.
- Low Leakage Current: With a reverse leakage current of 1µA, this diode minimizes the impact on the circuit's power consumption.
- Wide Operating Temperature Range: The component operates effectively across a temperature range of -40°C to +125°C, ensuring reliability in various environmental conditions.
- Compliance with Industry Standards: It complies with IEC 61000-4-2 (ESD) immunity test, with air discharge up to ±30kV and contact discharge up to ±25kV.
Applications
The onsemi NSQA6V8AW5T2G is versatile and can be used in a variety of applications, including:
- Consumer Electronics: Protecting sensitive components in consumer devices such as smartphones, tablets, and laptops.
- Industrial Control Systems: Safeguarding against voltage transients in industrial control systems and automation equipment.
- Automotive Systems: Providing protection in automotive electronics, such as infotainment systems and safety devices.
- Telecommunications: Ensuring the reliability of telecommunications equipment by protecting against voltage spikes.
Q & A
- What is the breakdown voltage range of the NSQA6V8AW5T2G? The breakdown voltage range is from 6.4V to 7.1V.
- What is the maximum clamping voltage of the NSQA6V8AW5T2G? The maximum clamping voltage is 13V.
- What is the peak pulse current capability of the NSQA6V8AW5T2G? The peak pulse current capability is 1.6A (8/20µs).
- What is the operating temperature range of the NSQA6V8AW5T2G? The operating temperature range is from -40°C to +125°C.
- What package style does the NSQA6V8AW5T2G come in? The NSQA6V8AW5T2G comes in the SOT-353 (SC-88A, SC-70-5) package style.
- Is the NSQA6V8AW5T2G compliant with any industry standards for ESD immunity? Yes, it complies with IEC 61000-4-2 (ESD) immunity test.
- What is the storage temperature range for the NSQA6V8AW5T2G? The storage temperature range is from -55°C to +150°C.
- What is the reverse leakage current of the NSQA6V8AW5T2G? The reverse leakage current is 1µA.
- How many units are typically included in a reel of NSQA6V8AW5T2G? A reel typically includes 3000 units.
- What is the capacitance of the NSQA6V8AW5T2G? The capacitance is 15pF.
