Overview

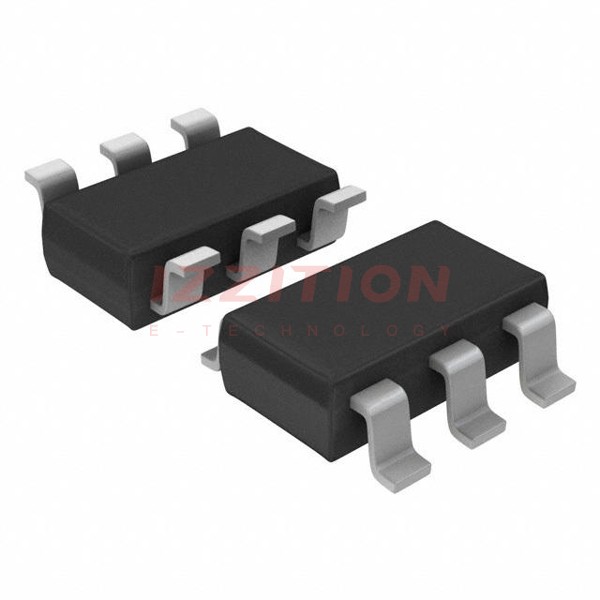

The onsemi NSP4201MR6T1G is a uni-directional ESD (Electrostatic Discharge) protection array designed to safeguard high-speed data lines from ESD, EFT (Electrical Fast Transients), and lightning surges. This component is part of onsemi's circuit protection portfolio and is particularly suited for applications requiring robust surge protection. The NSP4201MR6T1G is packaged in a TSOP-6 format, making it compact and suitable for surface mount applications.
Key Specifications
| Parameter | Description | Value | Unit |
|---|---|---|---|
| Manufacturer | onsemi | - | - |
| Direction Type | Uni-Directional | - | - |
| Diode Configuration | Single | - | - |
| Maximum Clamping Voltage | 12V (at 25A) | V | |
| Minimum Breakdown Voltage | 6V | V | |
| Package Type | TSOP-6 | - | - |
| Pin Count | 6 | - | - |
| Peak Pulse Power Dissipation | 500W | W | |
| Maximum Peak Pulse Current | 25A | A | |
| ESD Protection | Yes | - | - |
| Number of Elements per Chip | 1 | - | - |
| Minimum Operating Temperature | -40°C | °C | |
| Maximum Operating Temperature | +125°C | °C | |
| Dimensions | 3.1 x 1.7 x 1mm | mm | |
| Working Voltage | 5V | V | |
| Automotive Standard | AEC-Q101 | - | - |
| Capacitance | 5pF | pF | |
| Maximum Reverse Leakage Current | 1µA | µA |
Key Features
- Uni-Directional Protection: Provides protection against ESD, EFT, and lightning surges in a uni-directional configuration.
- Low Clamping Voltage: Ensures that the voltage exposed to the protected circuit during an ESD event is minimized.
- Low Leakage Current: Features a maximum reverse leakage current of 1µA, reducing power consumption.
- High Peak Pulse Power Dissipation: Capable of dissipating up to 500W of peak pulse power.
- Compact Package: TSOP-6 package suitable for surface mount applications, offering a compact solution for high-density designs.
- AEC-Q101 Qualified: Meets automotive standards, making it suitable for automotive and other demanding applications.
- RoHS Compliant: Pb-free, halogen-free, and BFR-free, ensuring environmental compliance.
Applications
- High Speed Communication Line Protection: Protects high-speed data lines in various communication systems.
- USB 1.1 and 2.0 Power and Data Line Protection: Safeguards USB interfaces from surge and ESD events.
- Digital Video Interface (DVI): Protects DVI interfaces in monitors and flat panel displays.
- Ethernet 10/100 Protection: Used in Ethernet applications to protect against surges and ESD.
- T1/E1 Interface Protection: Protects T1/E1 interfaces in telecommunications equipment.
Q & A
- What is the primary function of the NSP4201MR6T1G?
The primary function of the NSP4201MR6T1G is to provide uni-directional ESD protection for high-speed data lines against ESD, EFT, and lightning surges.
- What is the maximum clamping voltage of the NSP4201MR6T1G?
The maximum clamping voltage is 12V at a peak pulse current of 25A.
- What is the package type and pin count of the NSP4201MR6T1G?
The NSP4201MR6T1G is packaged in a TSOP-6 format with 6 pins.
- What are the operating temperature ranges for the NSP4201MR6T1G?
The operating temperature range is from -40°C to +125°C.
- Is the NSP4201MR6T1G RoHS compliant?
Yes, the NSP4201MR6T1G is RoHS compliant, Pb-free, halogen-free, and BFR-free.
- What is the peak pulse power dissipation of the NSP4201MR6T1G?
The peak pulse power dissipation is 500W.
- What are some typical applications for the NSP4201MR6T1G?
Typical applications include high-speed communication line protection, USB power and data line protection, DVI interfaces, Ethernet 10/100 protection, and T1/E1 interface protection.
- Does the NSP4201MR6T1G meet automotive standards?
Yes, it is AEC-Q101 qualified and PPAP capable.
- What is the capacitance of the NSP4201MR6T1G?
The capacitance is 5pF.
- What is the maximum reverse leakage current of the NSP4201MR6T1G?
The maximum reverse leakage current is 1µA.
