Overview

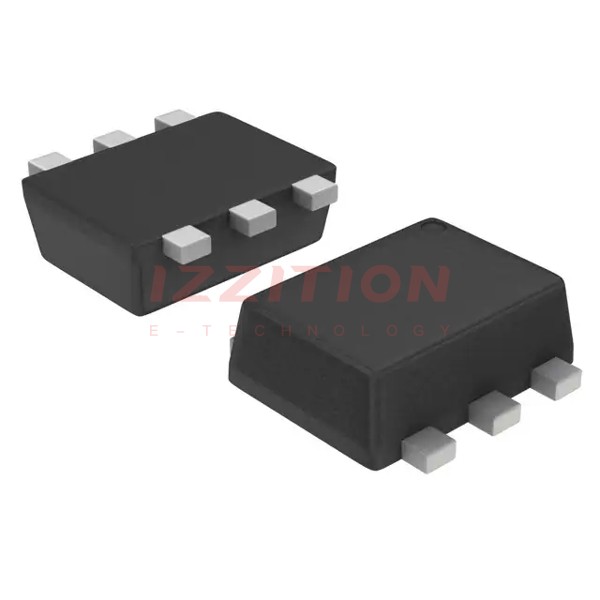

The NSDEMP11XV6T1G is a Common Anode Quad Array Switching Diode produced by onsemi. This device is designed for ultra-high speed switching applications, making it suitable for a variety of electronic systems that require fast and reliable switching performance. The diode is housed in the SOT-563 package, which is compact and suitable for surface mount technology (SMT) assembly.
Key Specifications
| Parameter | Value |
|---|---|
| Package | SOT-563 |
| Voltage Rating (V) | 80V |
| Current Rating (I) | 100mA per diode |
| Forward Voltage (Vf) | 1.2V @ 100mA |
| Reverse Recovery Time (trr) | Typically 10ns |
| Operating Temperature Range | -55°C to +150°C |
| RoHS Compliance | Yes |
Key Features
- Ultra-high speed switching capability, making it ideal for high-frequency applications.
- Common anode configuration with four diodes in a single package.
- Low forward voltage drop (Vf) of 1.2V at 100mA.
- Fast reverse recovery time (trr) of typically 10ns.
- Compact SOT-563 package suitable for surface mount technology (SMT).
- RoHS compliant, ensuring environmental sustainability.
Applications
- High-speed switching circuits.
- High-frequency signal processing.
- Power supply and voltage regulation systems.
- Communication and networking equipment.
- Automotive and industrial control systems.
Q & A
- What is the voltage rating of the NSDEMP11XV6T1G diode?
The voltage rating of the NSDEMP11XV6T1G diode is 80V. - What is the current rating per diode in the NSDEMP11XV6T1G?
The current rating per diode is 100mA. - What is the forward voltage drop (Vf) at 100mA for the NSDEMP11XV6T1G?
The forward voltage drop (Vf) at 100mA is 1.2V. - What is the typical reverse recovery time (trr) of the NSDEMP11XV6T1G?
The typical reverse recovery time (trr) is 10ns. - Is the NSDEMP11XV6T1G RoHS compliant?
Yes, the NSDEMP11XV6T1G is RoHS compliant. - What is the operating temperature range of the NSDEMP11XV6T1G?
The operating temperature range is -55°C to +150°C. - What package type is the NSDEMP11XV6T1G housed in?
The NSDEMP11XV6T1G is housed in the SOT-563 package. - What are some common applications of the NSDEMP11XV6T1G?
Common applications include high-speed switching circuits, high-frequency signal processing, power supply and voltage regulation systems, communication and networking equipment, and automotive and industrial control systems. - How many diodes are in the NSDEMP11XV6T1G package?
The NSDEMP11XV6T1G package contains four diodes in a common anode configuration. - Why is the NSDEMP11XV6T1G suitable for high-frequency applications?
The NSDEMP11XV6T1G is suitable for high-frequency applications due to its ultra-high speed switching capability and fast reverse recovery time.
