Overview

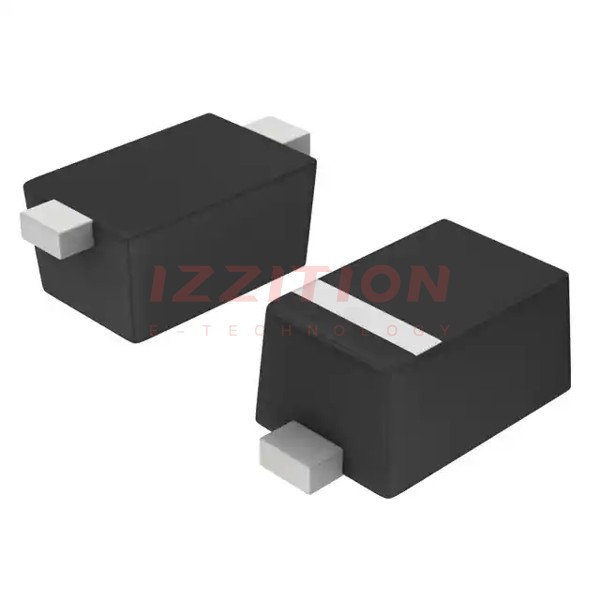

The NSD914XV2T1G is a high-speed switching diode produced by onsemi. This diode is designed for high-speed switching applications and is characterized by its small SOD-523 package, making it ideal for space-constrained designs. The device is lead-free, halogen-free, and RoHS compliant, ensuring environmental sustainability and regulatory compliance. It features a matte tin lead finish and is qualified for a maximum reflow temperature of 260°C, enhancing its reliability in various manufacturing processes.
Key Specifications
| Rating | Symbol | Max Unit |
|---|---|---|
| Reverse Voltage | VR | 100 V |
| Forward Current | IF | 200 mA |
| Peak Forward Surge Current | IFM(surge) | 500 mA |
| Reverse Breakdown Voltage (IBR = 100 μA) | V(BR) | 100 V |
| Reverse Voltage Leakage Current (VR = 20 V) | IR | 25 nA |
| Forward Voltage (IF = 10 mA) | VF | 1.0 V |
| Reverse Recovery Time (IF = IR = 10 mA) | trr | 4.0 ns |
| Diode Capacitance (VR = 0 V, f = 1.0 MHz) | CD | 4.0 pF |
| Junction and Storage Temperature Range | TJ, Tstg | -55 to 150 °C |
| Thermal Resistance Junction-to-Ambient | RJA | 635 °C/W |
Key Features
- High-speed switching capabilities, making it suitable for applications requiring fast switching times.
- Extremely small SOD-523 package, ideal for space-constrained designs.
- Lead-free, halogen-free, and RoHS compliant, ensuring environmental sustainability and regulatory compliance.
- Qualified for a maximum reflow temperature of 260°C, enhancing reliability in manufacturing processes.
- Low forward voltage drop (VF = 1.0 V at IF = 10 mA) and low reverse recovery time (trr = 4.0 ns).
- Low diode capacitance (CD = 4.0 pF at VR = 0 V, f = 1.0 MHz).
Applications
The NSD914XV2T1G high-speed switching diode is suitable for a variety of applications, including:
- High-frequency switching circuits.
- Power supply filtering and rectification.
- Audio and video signal processing.
- Automotive and industrial control systems.
- Consumer electronics requiring fast and reliable switching diodes.
Q & A
- What is the maximum reverse voltage rating of the NSD914XV2T1G diode?
The maximum reverse voltage rating is 100 V. - What is the maximum forward current rating of the NSD914XV2T1G diode?
The maximum forward current rating is 200 mA. - What is the peak forward surge current rating of the NSD914XV2T1G diode?
The peak forward surge current rating is 500 mA. - What is the reverse recovery time of the NSD914XV2T1G diode?
The reverse recovery time is 4.0 ns. - Is the NSD914XV2T1G diode RoHS compliant?
Yes, the NSD914XV2T1G diode is RoHS compliant, lead-free, and halogen-free. - What is the package type of the NSD914XV2T1G diode?
The package type is SOD-523. - What is the maximum junction and storage temperature range for the NSD914XV2T1G diode?
The maximum junction and storage temperature range is -55 to 150 °C. - What is the thermal resistance junction-to-ambient for the NSD914XV2T1G diode?
The thermal resistance junction-to-ambient is 635 °C/W. - What is the forward voltage drop of the NSD914XV2T1G diode at 10 mA forward current?
The forward voltage drop is 1.0 V at 10 mA forward current. - What is the diode capacitance of the NSD914XV2T1G diode at 0 V reverse voltage and 1.0 MHz frequency?
The diode capacitance is 4.0 pF at 0 V reverse voltage and 1.0 MHz frequency.
