Overview

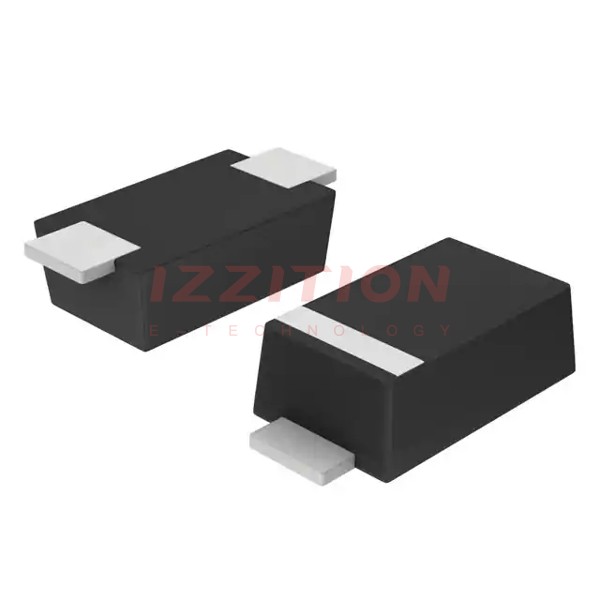

The NRVTSAF5100ET3G is a Low Leakage Trench-based Schottky Rectifier produced by onsemi. This component is designed to offer low forward voltage drop without the high reverse leakage commonly associated with traditional Schottky diodes. The trench-based technology enhances the performance and efficiency of the rectifier, making it suitable for a variety of applications requiring high reliability and low power loss.
Key Specifications
| Parameter | Value |
|---|---|
| Technology | Si (Silicon) |
| Forward Current (If) | 5 A |
| Repetitive Reverse Voltage (Vrrm) | 100 V |
| Forward Voltage (Vf) | 650 mV |
| Mounting Style | SMD/SMT |
| Package | SMA-FL |
Key Features
- Low Forward Voltage Drop: The NRVTSAF5100ET3G features a low forward voltage drop of 650 mV, which reduces power loss and increases efficiency in applications.
- Low Reverse Leakage: This rectifier is designed with trench-based technology to minimize reverse leakage current, enhancing overall performance and reliability.
- High Current Capability: With a forward current rating of 5 A, this component is suitable for applications requiring high current handling.
- Surface Mount Technology (SMD/SMT): The SMA-FL package makes it easy to integrate into surface mount designs, facilitating automated assembly and reducing board space.
Applications
The NRVTSAF5100ET3G is versatile and can be used in various applications, including:
- Power Supplies: Due to its low forward voltage drop and high current capability, it is ideal for use in power supply circuits.
- DC-DC Converters: The low leakage and high efficiency make it suitable for DC-DC converter applications.
- Motor Control and Drive Systems: It can be used in motor control and drive systems where high reliability and low power loss are critical.
- Automotive and Industrial Systems: Its robust design and low leakage characteristics make it a good fit for automotive and industrial systems.
Q & A
- What is the forward current rating of the NRVTSAF5100ET3G?
The forward current rating of the NRVTSAF5100ET3G is 5 A. - What is the repetitive reverse voltage (Vrrm) of the NRVTSAF5100ET3G?
The repetitive reverse voltage (Vrrm) of the NRVTSAF5100ET3G is 100 V. - What is the forward voltage drop (Vf) of the NRVTSAF5100ET3G?
The forward voltage drop (Vf) of the NRVTSAF5100ET3G is 650 mV. - What type of technology is used in the NRVTSAF5100ET3G?
The NRVTSAF5100ET3G uses trench-based Schottky rectifier technology. - What is the mounting style of the NRVTSAF5100ET3G?
The NRVTSAF5100ET3G uses Surface Mount Technology (SMD/SMT) with an SMA-FL package. - What are some common applications for the NRVTSAF5100ET3G?
The NRVTSAF5100ET3G is commonly used in power supplies, DC-DC converters, motor control and drive systems, and automotive and industrial systems. - Why is the NRVTSAF5100ET3G preferred over traditional Schottky diodes?
The NRVTSAF5100ET3G is preferred due to its low forward voltage drop and low reverse leakage current, which enhance efficiency and reliability. - Is the NRVTSAF5100ET3G RoHS compliant?
Yes, the NRVTSAF5100ET3G is RoHS compliant. - What is the package type of the NRVTSAF5100ET3G?
The package type of the NRVTSAF5100ET3G is SMA-FL. - Where can I find detailed specifications for the NRVTSAF5100ET3G?
Detailed specifications for the NRVTSAF5100ET3G can be found in the datasheet available on the onsemi website or through distributors like Mouser Electronics and LCSC.
