Overview

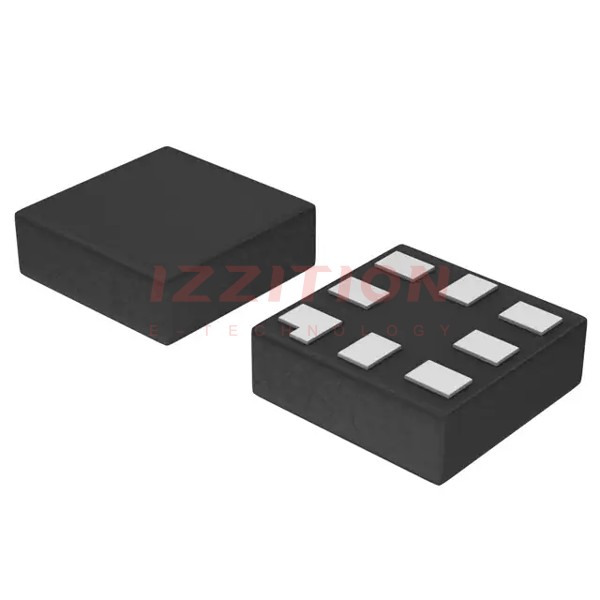

The NLX2G08MUTCG is a dual 2-input AND gate logic IC produced by ON Semiconductor. This component is designed for high-speed applications and operates over a wide voltage range, making it versatile for various digital circuits. However, it is important to note that this product has been discontinued by ON Semiconductor, with the last ship date being May 13, 2021.
Key Specifications
| Specification | Value |
|---|---|
| Supply Voltage Range | 1.65 V to 5.5 V |
| Low Level Output Current | 24 mA |
| High Level Output Current | -24 mA |
| Propagation Delay Time (typical at VCC = 5.0 V) | 2.5 ns |
| Operating Temperature Range | -55°C to 125°C |
| Maximum Propagation Delay @ V, Max CL | 3.7 ns @ 5 V, 50 pF |
Key Features
- High Speed: Typical propagation delay of 2.5 ns at VCC = 5.0 V, making it suitable for high-speed digital circuits.
- Wide Voltage Range: Operates from 1.65 V to 5.5 V, providing flexibility in various application environments.
- Low Power Consumption: Designed to minimize power consumption, which is beneficial for battery-powered and energy-efficient systems.
- Dual 2-Input AND Gate: Provides two independent AND gates in a single package, enhancing functionality in a compact form factor.
Applications
- Digital Logic Circuits: Ideal for use in digital logic circuits requiring high-speed AND gate operations.
- Embedded Systems: Suitable for embedded systems that require low power consumption and high-speed logic operations.
- Industrial Control Systems: Can be used in industrial control systems where reliable and fast logic operations are necessary.
- Consumer Electronics: Applicable in various consumer electronic devices that require compact and efficient logic ICs.
Q & A
- What is the supply voltage range of the NLX2G08MUTCG?
The supply voltage range is from 1.65 V to 5.5 V.
- What is the typical propagation delay time at VCC = 5.0 V?
The typical propagation delay time is 2.5 ns at VCC = 5.0 V.
- What is the operating temperature range of the NLX2G08MUTCG?
The operating temperature range is from -55°C to 125°C.
- Is the NLX2G08MUTCG still in production?
No, the NLX2G08MUTCG has been discontinued by ON Semiconductor, with the last ship date being May 13, 2021.
- What are the low and high level output currents of the NLX2G08MUTCG?
The low level output current is 24 mA, and the high level output current is -24 mA.
- What type of logic gates does the NLX2G08MUTCG contain?
The NLX2G08MUTCG contains two independent 2-input AND gates.
- What is the maximum propagation delay at VCC = 5 V and CL = 50 pF?
The maximum propagation delay is 3.7 ns at VCC = 5 V and CL = 50 pF.
- Where can I find replacement devices for the NLX2G08MUTCG?
ON Semiconductor may provide recommended replacement devices. For those without recommended replacements, Rochester Electronics may carry remaining inventory.
- What are some common applications of the NLX2G08MUTCG?
Common applications include digital logic circuits, embedded systems, industrial control systems, and consumer electronics.
- How can I contact ON Semiconductor for more information on the NLX2G08MUTCG?
You can contact your local ON Semiconductor sales office or customer service representative for more information).
