Overview

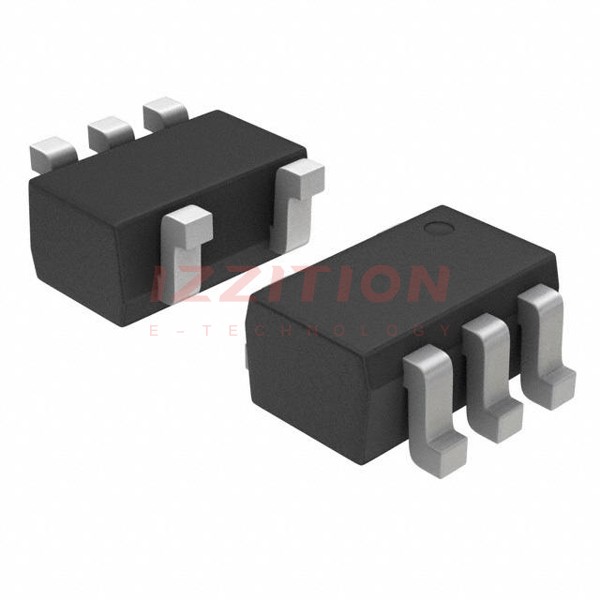

The NLV17SZ126DFT2G is a high-performance, single non-inverting 3-state buffer produced by onsemi. This component is designed to operate over a wide voltage range from 1.65 V to 5.5 V, making it versatile for various applications. It features extremely high speed, with a typical propagation delay of 2.6 ns at VCC = 5.0 V. The device is available in several tiny footprint packages, including SC-88A, SC-74A, SOT-553, SOT-953, and UDFN6, which are ideal for space-constrained designs.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| DC Supply Voltage (VCC) | 1.65 | 5.5 | V | |
| DC Input Voltage (VIN) | 0 | 5.5 | V | |
| DC Output Voltage (VOUT) | 0 | 5.5 | V | |
| Operating Temperature Range (TA) | -55 | 125 | °C | |
| Propagation Delay (tPD) at VCC = 5 V | 2.6 | ns | ||
| Output Sink/Source Current at VCC = 3.0 V | 24 | mA | ||
| Input Capacitance (CIN) at VCC = 5.5 V | 2.5 | pF | ||
| Output Capacitance (COUT) at VCC = 5.5 V | 2.5 | pF |
Key Features
- Designed for 1.65 V to 5.5 V VCC operation
- Extremely high speed: typical propagation delay of 2.6 ns at VCC = 5.0 V
- Inputs/outputs overvoltage tolerant up to 5.5 V
- LVTTL and LVCMOS compatible
- 24 mA balanced output sink and source capability at 3.0 V
- Near zero static supply current to reduce system power requirements
- 3-state OE input is active HIGH
- AEC-Q100 qualified and PPAP capable for automotive and other critical applications
- Pb-free, halogen-free/BFR-free, and RoHS compliant
Applications
The NLV17SZ126DFT2G is suitable for a wide range of applications, including:
- Automotive systems requiring high reliability and compliance with AEC-Q100 standards
- Industrial control systems where high speed and low power consumption are critical
- Consumer electronics needing compact, high-performance buffer solutions
- Telecommunication equipment requiring reliable and fast signal buffering
- Medical devices where precision and reliability are paramount
Q & A
- What is the voltage range for the NLV17SZ126DFT2G? The NLV17SZ126DFT2G operates from 1.65 V to 5.5 V.
- What is the typical propagation delay at VCC = 5.0 V? The typical propagation delay is 2.6 ns.
- Is the NLV17SZ126DFT2G overvoltage tolerant? Yes, the inputs and outputs are overvoltage tolerant up to 5.5 V.
- What is the output sink/source current capability at VCC = 3.0 V? The output can sink or source up to 24 mA at VCC = 3.0 V.
- Is the NLV17SZ126DFT2G RoHS compliant? Yes, it is Pb-free, halogen-free/BFR-free, and RoHS compliant.
- What packages are available for the NLV17SZ126DFT2G? It is available in SC-88A, SC-74A, SOT-553, SOT-953, and UDFN6 packages.
- What is the operating temperature range for the NLV17SZ126DFT2G? The operating temperature range is -55°C to 125°C.
- Is the NLV17SZ126DFT2G suitable for automotive applications? Yes, it is AEC-Q100 qualified and PPAP capable.
- What is the input capacitance of the NLV17SZ126DFT2G? The input capacitance is typically 2.5 pF at VCC = 5.5 V.
- How does the 3-state OE input work? The 3-state OE input is active HIGH, allowing the output to be in a high-impedance state when OE is HIGH.
