Overview
The NLU1G04MUTCG is a single inverter integrated circuit produced by onsemi. This component is designed to provide high-speed logic operations and is part of the NLU1G04 series. However, it is important to note that the NLU1G04MUTCG is currently obsolete and no longer manufactured by onsemi.
Key Specifications
| Parameter | Value |
|---|---|

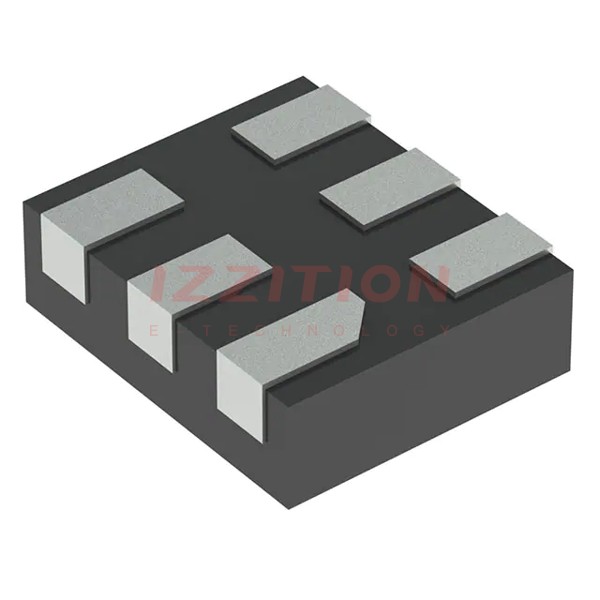

| Package Type | UTQFN-6 |
| Supply Voltage | 1.65 V to 5.5 V |
| Input/Output Voltage | Up to 7.0 V |
| Propagation Delay | Typically 4.5 ns at Vcc = 5 V |
| Operating Temperature | -40°C to +125°C |
| Logic Family | CMOS |
Key Features
- High Speed: The NLU1G04MUTCG offers fast propagation delay, making it suitable for high-speed applications.
- Wide Supply Voltage Range: Operates from 1.65 V to 5.5 V, providing flexibility in various system designs.
- Input/Output Protection: The component can handle input and output voltages up to 7.0 V, regardless of the supply voltage.
- Low Power Consumption: Designed with CMOS technology to minimize power consumption.
Applications
The NLU1G04MUTCG is suitable for a variety of applications requiring high-speed logic operations, including but not limited to:
- Digital Signal Processing
- High-Speed Data Transmission Systems
- Embedded Systems
- Consumer Electronics
Q & A
- What is the NLU1G04MUTCG? The NLU1G04MUTCG is a single inverter integrated circuit produced by onsemi.
- What is the package type of the NLU1G04MUTCG? The package type is UTQFN-6.
- What is the supply voltage range for the NLU1G04MUTCG? The supply voltage range is from 1.65 V to 5.5 V.
- What is the maximum input/output voltage for the NLU1G04MUTCG? The maximum input/output voltage is up to 7.0 V.
- Is the NLU1G04MUTCG still in production? No, the NLU1G04MUTCG is obsolete and no longer manufactured by onsemi.
- What are the typical propagation delays for the NLU1G04MUTCG? The typical propagation delay is around 4.5 ns at Vcc = 5 V.
- What is the operating temperature range for the NLU1G04MUTCG? The operating temperature range is from -40°C to +125°C.
- What logic family does the NLU1G04MUTCG belong to? The NLU1G04MUTCG belongs to the CMOS logic family.
- What are some common applications for the NLU1G04MUTCG? Common applications include digital signal processing, high-speed data transmission systems, embedded systems, and consumer electronics.
- Where can I find detailed specifications for the NLU1G04MUTCG? Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser and Digi-Key.
