Overview
The NLSV4T3144MUTAG, produced by onsemi, is a 4-bit configurable dual-supply bus buffer level translator. This device is designed to translate voltage levels between two different power supply rails, VCCA and VCCB, which can operate within a range of 1.6 V to 3.6 V. It is particularly useful in applications requiring low-voltage translation and high-speed data transfer with balanced propagation delays.
Key Specifications
| Parameter | Condition | Min | Max | Unit |
|---|---|---|---|---|
| VCCA, VCCB (DC Supply Voltage) | VCCA ≤ VCCB | -0.5 | 5.5 | V |
| VI (DC Input Voltage) | - | -0.5 | 5.5 | V |
| VO (DC Output Voltage) | Power Down | -0.5 | 5.5 | V |
| VIH (Input HIGH Voltage) | VCCA = 2.7 - 3.6 V | 2.0 | VCCA * 0.65 | V |
| VIL (Input LOW Voltage) | VCCA = 2.7 - 3.6 V | 0 | 0.8 * VCCA | V |
| VOH (Output HIGH Voltage) | IOH = -100 μA, VCCA = 1.6 - 3.6 V | VCCA - 0.2 | VCCA | V |
| VOL (Output LOW Voltage) | IOL = 100 μA, VCCA = 1.6 - 3.6 V | 0 | 0.2 | V |
| tPLH, tPHL (Propagation Delay) | VCCA = VCCB = 3.6 V | 3 | 6.1 | ns |
| TA (Operating Temperature Range) | - | -40 | 85 | °C |
Key Features
- Wide VCCA and VCCB Operating Range: 1.6 V to 3.6 V, allowing for low-voltage translation between input and output ports.
- High-Speed Operation: With balanced propagation delays, ensuring consistent and reliable data transfer.
- Input and Output Protection: Overvoltage tolerance (OVT) up to 5.5 V for inputs and outputs.
- Output Enable and Disable: Outputs are in a 3-state mode until both VCCA and VCCB are active.
- Power-Off Protection: Ensures device integrity when power is turned off.

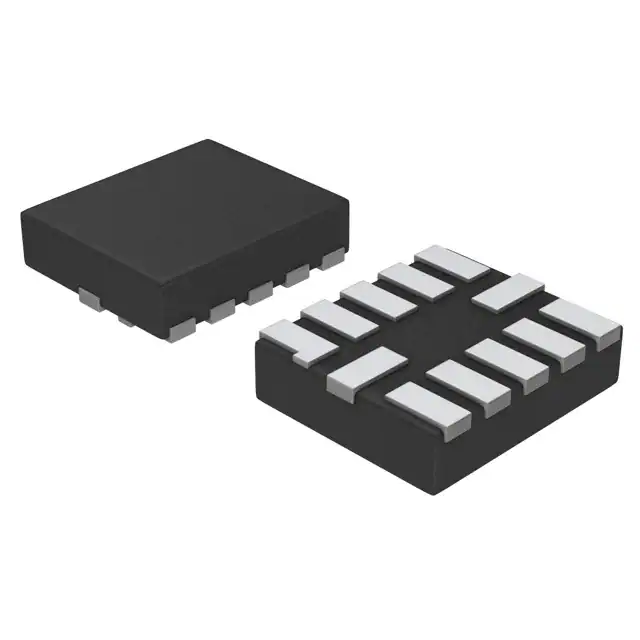

- Ultra-Small Packaging: UQFN-12 package measuring 1.7 mm x 2.0 mm.
- ESD Protection: Human Body Model (HBM) > 3000 V for all pins.
- Environmental Compliance: Pb-free, halogen-free, and RoHS compliant.
Applications
- Mobile Phones and PDAs: Ideal for voltage translation in portable devices.
- Other Portable Devices: Suitable for any device requiring low-voltage level translation.
- SPI Bus Voltage Translation: Can be used to translate voltage levels in SPI bus applications.
Q & A
- What is the operating voltage range for VCCA and VCCB in the NLSV4T3144?
The operating voltage range for both VCCA and VCCB is from 1.6 V to 3.6 V.
- What is the propagation delay for the NLSV4T3144?
The propagation delay (tPLH, tPHL) ranges from 3 ns to 6.1 ns depending on the supply voltage.
- Does the NLSV4T3144 have overvoltage protection?
- What is the output state when VCCA and VCCB are not active?
The outputs are in a 3-state mode until both VCCA and VCCB are active.
- Is the NLSV4T3144 environmentally compliant?
- What is the package type and size of the NLSV4T3144?
The device is packaged in a UQFN-12 package measuring 1.7 mm x 2.0 mm.
- What is the ESD protection level for the NLSV4T3144?
The device has ESD protection greater than 3000 V according to the Human Body Model (HBM).
- What are the typical applications for the NLSV4T3144?
- What is the operating temperature range for the NLSV4T3144?
- How do I ensure the device is not damaged during power-up?
