NCP100SNT1G
  • Share:

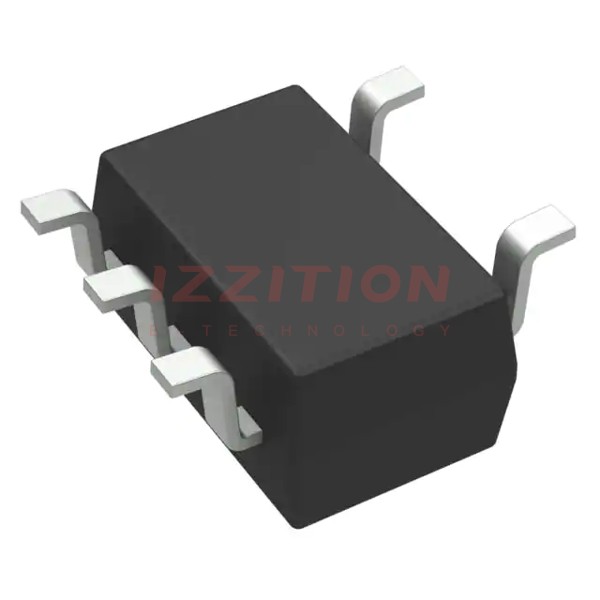

onsemi NCP100SNT1G

Manufacturer No:
NCP100SNT1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
IC VREF SHUNT ADJ 1.7% 5TSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NCP100SNT1G is a precision low voltage shunt regulator produced by onsemi. This device is designed to provide a programmable voltage reference over a range of 0.9 V to 6.0 V, making it highly versatile for various applications. The NCP100SNT1G features high accuracy and stability, ensuring reliable performance in a wide range of operating conditions.

Key Specifications

Parameter Value
Input Voltage - Max 7 V
Shunt Current - Max 20 mA
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Voltage Range 0.9 V to 6.0 V
Reference Accuracy at 25°C ±1.7%
Package Type 5-TSOP

Key Features

  • Precision low voltage shunt regulator with programmable voltage reference from 0.9 V to 6.0 V.
  • High accuracy with a guaranteed reference accuracy of ±1.7% at 25°C.
  • Maximum shunt current of 20 mA.
  • Operating temperature range from -40°C to +85°C.
  • Compact 5-TSOP package for space-efficient designs.

Applications

The NCP100SNT1G is suitable for a variety of applications requiring precise voltage regulation, including:

  • Power management systems in consumer electronics.
  • Industrial control systems.
  • Automotive electronics.
  • Medical devices requiring stable voltage references.
  • Telecommunication equipment.

Q & A

  1. What is the voltage range of the NCP100SNT1G?

    The NCP100SNT1G has a programmable voltage range of 0.9 V to 6.0 V.

  2. What is the maximum shunt current of the NCP100SNT1G?

    The maximum shunt current is 20 mA.

  3. What is the operating temperature range of the NCP100SNT1G?

    The operating temperature range is from -40°C to +85°C.

  4. What is the package type of the NCP100SNT1G?

    The package type is 5-TSOP.

  5. What is the reference accuracy of the NCP100SNT1G at 25°C?

    The reference accuracy at 25°C is ±1.7%.

  6. What are some common applications of the NCP100SNT1G?

    Common applications include power management systems, industrial control systems, automotive electronics, medical devices, and telecommunication equipment.

  7. Is the NCP100SNT1G suitable for high-temperature environments?

    Yes, it can operate up to +85°C.

  8. Can the NCP100SNT1G be used in low-voltage applications?

    Yes, it can be used in applications requiring voltages as low as 0.9 V.

  9. What is the maximum input voltage for the NCP100SNT1G?

    The maximum input voltage is 7 V.

  10. Is the NCP100SNT1G available in other package types?

    No, it is specifically available in the 5-TSOP package type.

Product Attributes

Reference Type:Shunt
Output Type:Adjustable
Voltage - Output (Min/Fixed):0.9V
Voltage - Output (Max):6 V
Current - Output:20 mA
Tolerance:±1.7%
Temperature Coefficient:-
Noise - 0.1Hz to 10Hz:-
Noise - 10Hz to 10kHz:-
Voltage - Input:-
Current - Supply:-
Current - Cathode:100 µA
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:SOT-23-5 Thin, TSOT-23-5
Supplier Device Package:5-TSOP
0 Remaining View Similar

In Stock

-
192

Please send RFQ , we will respond immediately.

Same Series
NCP100SNT1
NCP100SNT1
IC VREF SHUNT ADJ 1.7% 5TSOP
NCP100ALPRPG
NCP100ALPRPG
IC VREF SHUNT ADJ 1.7% TO92-3

Similar Products

Part Number NCP100SNT1G NCP100SNT1
Manufacturer onsemi onsemi
Product Status Obsolete Obsolete
Reference Type Shunt Shunt
Output Type Adjustable Adjustable
Voltage - Output (Min/Fixed) 0.9V 0.9V
Voltage - Output (Max) 6 V 6 V
Current - Output 20 mA 20 mA
Tolerance ±1.7% ±1.7%
Temperature Coefficient - -
Noise - 0.1Hz to 10Hz - -
Noise - 10Hz to 10kHz - -
Voltage - Input - -
Current - Supply - -
Current - Cathode 100 µA 100 µA
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount
Package / Case SOT-23-5 Thin, TSOT-23-5 SOT-23-5 Thin, TSOT-23-5
Supplier Device Package 5-TSOP 5-TSOP
