Overview

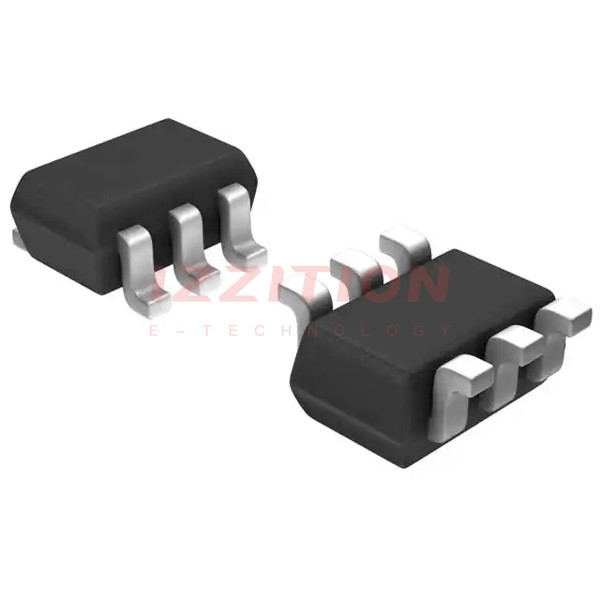

The NC7WZ17P6X_F40 is a dual buffer with Schmitt trigger inputs from onsemi's Ultra-High Speed (UHS) series of TinyLogic® products. Fabricated with advanced CMOS technology, this device achieves ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range of 1.65V to 5.5V. The inputs and outputs are high-impedance when VCC is 0V, and the inputs can tolerate voltages up to 5.5V, independent of the VCC operating voltage. This product is suitable for a wide range of applications due to its general usage and versatile performance characteristics.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| VCC Supply Voltage | -0.5 | - | 6.5 | V |
| VIN DC Input Voltage | -0.5 | - | 6.5 | V |
| VOUT DC Output Voltage | -0.5 | - | 6.5 | V |
| tPD Propagation Delay (at 5V VCC) | - | 3.6 | 4.3 | ns |
| IO DC Output Current | - | - | ±50 | mA |
| TA Operating Temperature | -40 | - | 85 | °C |
| ICC Quiescent Supply Current | - | - | 10 | μA |
Key Features
- Ultra-High Speed: Typical propagation delay of 3.6ns into 50pF at 5V VCC.
- High Output Drive: ±24mA at 3V VCC.
- Broad VCC Operating Range: 1.65V to 5.5V.
- Power Down High Impedance Inputs/Outputs.
- Over-Voltage Tolerance Inputs: Facilitates 5V to 3V translation.
- Proprietary Noise/EMI Reduction Circuitry.
- Ultra-Small MicroPak™ Packages and Space-Saving SC70 Package.
- Schmitt Trigger Inputs with 1V typical hysteresis between positive- and negative-going input threshold voltage at 5V.
Applications
The NC7WZ17P6X_F40 is suitable for a wide range of applications due to its general usage and versatile performance characteristics. It can be used in various digital logic circuits, signal buffering, and level translation between different voltage domains. The device's high speed, low power consumption, and broad operating voltage range make it ideal for use in consumer electronics, industrial control systems, and other electronic devices that require reliable and efficient logic operations.
Q & A
- What is the operating voltage range of the NC7WZ17P6X_F40?
The operating voltage range is from 1.65V to 5.5V.
- What is the typical propagation delay of the NC7WZ17P6X_F40 at 5V VCC?
The typical propagation delay is 3.6ns into 50pF at 5V VCC.
- What is the maximum output current of the NC7WZ17P6X_F40?
The maximum output current is ±50mA.
- What type of inputs does the NC7WZ17P6X_F40 have?
The device has Schmitt trigger inputs with a typical hysteresis of 1V between the positive- and negative-going input threshold voltage at 5V.
- What are the package options for the NC7WZ17P6X_F40?
The device is available in ultra-small MicroPak™ packages and space-saving SC70 packages.
- What is the operating temperature range of the NC7WZ17P6X_F40?
The operating temperature range is from -40°C to 85°C.
- Does the NC7WZ17P6X_F40 have over-voltage tolerance on its inputs?
Yes, the inputs can tolerate voltages up to 5.5V, independent of the VCC operating voltage, facilitating 5V to 3V translation.
- What is the quiescent supply current of the NC7WZ17P6X_F40?
The quiescent supply current is typically up to 10μA.
- Is the NC7WZ17P6X_F40 suitable for high-speed applications?
Yes, the device is designed for ultra-high speed applications with a typical propagation delay of 3.6ns into 50pF at 5V VCC.
- Does the NC7WZ17P6X_F40 have noise/EMI reduction features?
Yes, the device includes proprietary noise/EMI reduction circuitry.
