Overview

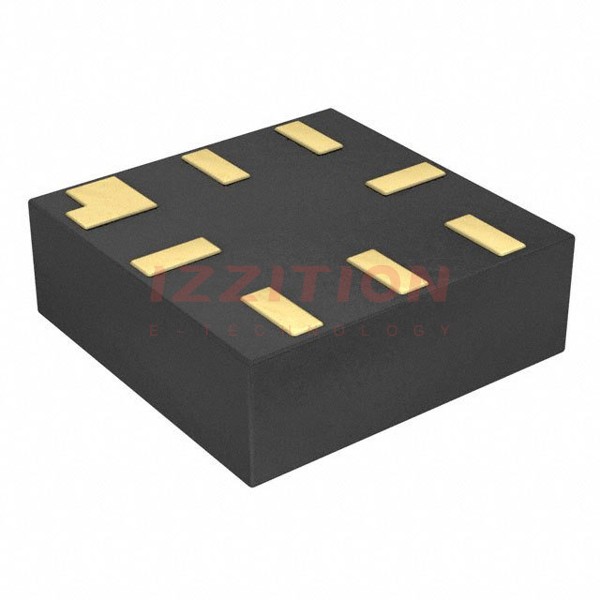

The NC7WB66L8X is a high-performance analog switch produced by onsemi. This component is part of the MicroPak-8 package family and is designed for low-voltage applications. Although it is currently obsolete and no longer in production, it was widely used in various electronic circuits due to its robust specifications and features. The NC7WB66L8X is a Double-Pole Double-Throw (DPDT) analog switch, but it can also be configured as two Single-Pole Single-Throw (SPST) switches, offering flexibility in circuit design.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | MicroPak-8 |
| Number of Channels | 2 (DPDT or 2 SPST) |
| Switch Type | Normally Open |
| On Resistance | 10Ω |
| Supply Voltage Range | 1.65V to 5.5V |
| Operating Temperature Range | -40°C to 85°C |
| RoHS Compliance | Yes |
Key Features
- High-performance analog switch with low on-resistance (10Ω).
- Double-Pole Double-Throw (DPDT) configuration or two Single-Pole Single-Throw (SPST) configurations.
- Negative swing audio capability, making it suitable for audio applications.
- Low voltage operation (1.65V to 5.5V).
- Compact MicroPak-8 package.
Applications
The NC7WB66L8X is suitable for a variety of applications, including audio circuits, communication systems, and general-purpose switching in low-voltage electronic devices. Its negative swing audio capability makes it particularly useful in audio signal processing and routing. Additionally, it can be used in battery-powered devices and other low-power electronic systems.
Q & A
- What is the package type of the NC7WB66L8X?
The NC7WB66L8X comes in a MicroPak-8 package. - What is the on-resistance of the NC7WB66L8X?
The on-resistance is 10Ω. - Is the NC7WB66L8X RoHS compliant?
Yes, the NC7WB66L8X is RoHS compliant. - What is the operating temperature range of the NC7WB66L8X?
The operating temperature range is -40°C to 85°C. - Can the NC7WB66L8X be used in audio applications?
Yes, it has negative swing audio capability, making it suitable for audio applications. - What is the supply voltage range for the NC7WB66L8X?
The supply voltage range is 1.65V to 5.5V. - Is the NC7WB66L8X still in production?
No, the NC7WB66L8X is obsolete and no longer in production. - What are the possible switch configurations for the NC7WB66L8X?
The NC7WB66L8X can be configured as a Double-Pole Double-Throw (DPDT) or two Single-Pole Single-Throw (SPST) switches. - Where can I find substitutes for the NC7WB66L8X?
You can find substitutes on websites like Digi-Key, Mouser, or by consulting the manufacturer's recommendations. - What is the typical use case for the NC7WB66L8X in electronic circuits?
The NC7WB66L8X is typically used for general-purpose switching, audio signal processing, and routing in low-voltage electronic devices.
