Overview

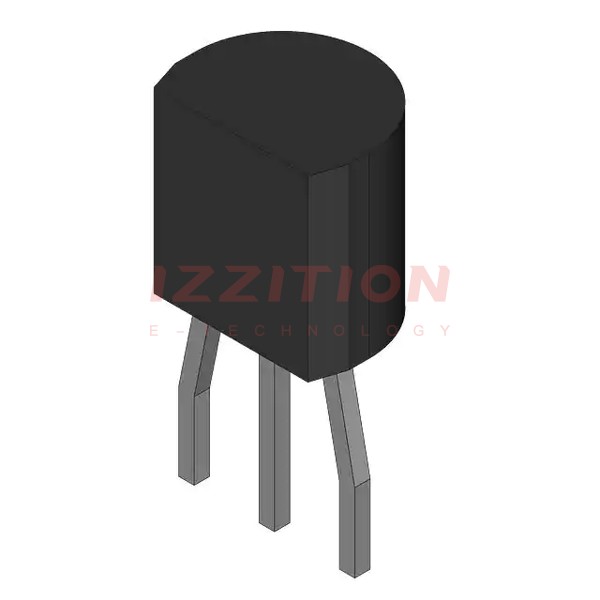

The MPSA92RLRMG is a High Voltage PNP Bipolar Transistor produced by onsemi. This device is designed for general purpose amplifier applications and is housed in the TO-92 package. It is part of the MPSA92 series, which is known for its high voltage handling capabilities and low VCE(sat) characteristics.
Key Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Collector-Emitter Voltage | VCEO | -300 | Vdc |
| Collector-Base Voltage | VCBO | -300 | Vdc |
| Emitter-Base Voltage | VEBO | -5.0 | Vdc |
| Collector Current - Continuous | IC | -500 | mAdc |
| Operating and Storage Junction Temperature Range | TJ, Tstg | -55 to +150 | °C |
| Total Device Dissipation @ TA = 25°C | PD | 625 mW / 5.0 mW/°C | mW / mW/°C |
| Thermal Resistance, Junction to Ambient | RθJA | 200 °C/W | °C/W |
| Thermal Resistance, Junction to Case | RθJC | 83.3 °C/W | °C/W |
| DC Current Gain (hFE) | hFE | 25 - 40 | - |
| Collector-Emitter Saturation Voltage (VCE(sat)) | VCE(sat) | -0.5 Vdc | Vdc |
| Base-Emitter Saturation Voltage (VBE(sat)) | VBE(sat) | -0.9 Vdc | Vdc |
| Current-Gain - Bandwidth Product (fT) | fT | 50 MHz | MHz |
Key Features
- High Voltage PNP Bipolar Transistor with a maximum collector-emitter voltage of -300 Vdc.
- Low VCE(sat) of -0.5 Vdc, making it suitable for applications requiring low saturation voltage.
- High DC current gain (hFE) ranging from 25 to 40.
- Wide operating and storage junction temperature range of -55 to +150 °C.
- Pb-Free TO-92 package, making it compliant with environmental regulations.
- High thermal resistance, junction to ambient (RθJA) of 200 °C/W and junction to case (RθJC) of 83.3 °C/W.
Applications
- General purpose amplifier applications.
- High voltage driver applications.
- Switching and linear amplification in various electronic circuits.
- Automotive and industrial control systems where high voltage handling is required.
Q & A
- What is the maximum collector-emitter voltage of the MPSA92RLRMG transistor?
The maximum collector-emitter voltage (VCEO) is -300 Vdc.
- What is the package type of the MPSA92RLRMG transistor?
The transistor is housed in a Pb-Free TO-92 package.
- What is the DC current gain (hFE) range of the MPSA92RLRMG transistor?
The DC current gain (hFE) ranges from 25 to 40.
- What is the collector-emitter saturation voltage (VCE(sat)) of the MPSA92RLRMG transistor?
The collector-emitter saturation voltage (VCE(sat)) is -0.5 Vdc.
- What is the thermal resistance, junction to ambient (RθJA), of the MPSA92RLRMG transistor?
The thermal resistance, junction to ambient (RθJA), is 200 °C/W.
- What is the operating and storage junction temperature range of the MPSA92RLRMG transistor?
The operating and storage junction temperature range is -55 to +150 °C.
- What are some typical applications of the MPSA92RLRMG transistor?
Typical applications include general purpose amplifier applications, high voltage driver applications, and switching and linear amplification in various electronic circuits.
- Is the MPSA92RLRMG transistor Pb-Free?
Yes, the MPSA92RLRMG transistor is Pb-Free, making it compliant with environmental regulations.
- What is the current-gain - bandwidth product (fT) of the MPSA92RLRMG transistor?
The current-gain - bandwidth product (fT) is 50 MHz.
- How much collector current can the MPSA92RLRMG transistor handle continuously?
The transistor can handle a continuous collector current (IC) of -500 mAdc.
