Overview

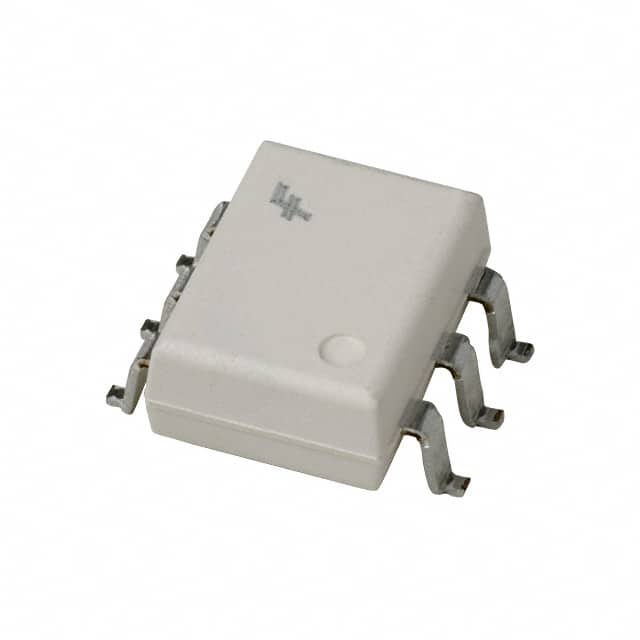

The MOC8050SR2M is an optically coupled optoisolator produced by onsemi. This device belongs to the family of photodarlington type optocouplers, which are designed to provide electrical isolation between the input and output circuits. The MOC8050SR2M features a gallium arsenide infrared emitting diode and a silicon photodarlington transistor, making it suitable for a variety of applications requiring high isolation and reliability.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | SMD-6P |
| Isolation Voltage | 4170Vrms |
| Current Transfer Ratio (CTR) | 100% to 600% |
| Collector Current | 150mA |
| Emitter-Base Breakdown Voltage | 80V |
| Forward Voltage (IF) | 1.18V |
| Operating Temperature Range | -40°C to 100°C |
| RoHS Status | ROHS3 Compliant |
Key Features
- High isolation voltage of 4170Vrms, ensuring robust electrical isolation between input and output circuits.
- Photodarlington output providing high current gain.
- Gallium arsenide infrared emitting diode for efficient light transmission.
- Silicon photodarlington transistor for reliable operation.
- Compact SMD-6P package suitable for surface mount applications.
- Wide operating temperature range from -40°C to 100°C.
- ROHS3 compliant, ensuring environmental sustainability.
Applications
- Industrial control systems requiring high isolation and reliability.
- Power supplies and DC-DC converters where electrical isolation is crucial.
- Medical devices that demand high safety standards.
- Automation and robotics systems needing reliable signal isolation.
- Telecommunication equipment requiring high voltage isolation.
Q & A
- What is the isolation voltage of the MOC8050SR2M? The isolation voltage is 4170Vrms.
- What type of output does the MOC8050SR2M have? The MOC8050SR2M has a photodarlington output.
- What is the collector current rating of the MOC8050SR2M? The collector current rating is 150mA.
- Is the MOC8050SR2M ROHS compliant? Yes, it is ROHS3 compliant.
- What is the operating temperature range of the MOC8050SR2M? The operating temperature range is from -40°C to 100°C.
- What type of package does the MOC8050SR2M come in? The MOC8050SR2M comes in an SMD-6P package.
- What is the forward voltage (IF) of the MOC8050SR2M? The forward voltage (IF) is 1.18V.
- What are some typical applications of the MOC8050SR2M? Typical applications include industrial control systems, power supplies, medical devices, automation and robotics systems, and telecommunication equipment.
- What type of emitting diode is used in the MOC8050SR2M? The MOC8050SR2M uses a gallium arsenide infrared emitting diode.
- What is the current transfer ratio (CTR) range of the MOC8050SR2M? The current transfer ratio (CTR) range is from 100% to 600%.
