Overview
The MBRB8H100T4G is a state-of-the-art Schottky power rectifier produced by onsemi. This component employs the Schottky Barrier principle in a large metal-to-silicon power diode, making it highly efficient for various power rectification applications. It is part of the SWITCHMODE series, known for its advanced geometry and construction, including epitaxial construction with oxide passivation and metal overlay contact.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (V) | 100V |
| Current Rating (A) | 8A |
| Forward Voltage Drop (V) | 710mV @ 8A |

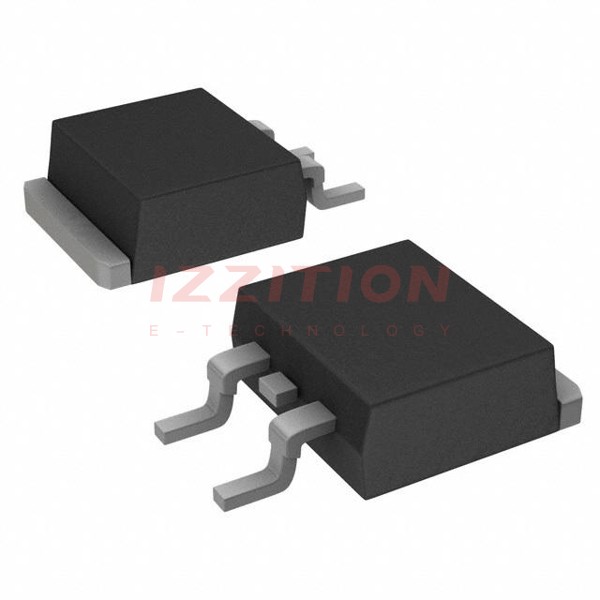

| Package Type | TO-263-2 (D2PAK) |
| Pins | 3 |
| RoHS Compliance | Yes |
Key Features
- State-of-the-art geometry with epitaxial construction, oxide passivation, and metal overlay contact.
- Low forward voltage drop, reducing power losses and increasing efficiency.
- High current handling capability of up to 8A.
- Ideal for use as rectifiers in low voltage, high frequency applications.
- RoHS compliant, ensuring environmental sustainability.
Applications
The MBRB8H100T4G Schottky diode is suited for a variety of applications, including:
- Power supplies and DC-DC converters
- Switch-mode power supplies
- High-frequency rectification
- Automotive and industrial power systems
- Other high-current, low-voltage rectification needs.
Q & A
- What is the voltage rating of the MBRB8H100T4G? The voltage rating is 100V.
- What is the current rating of the MBRB8H100T4G? The current rating is 8A.
- What is the forward voltage drop at 8A? The forward voltage drop at 8A is 710mV.
- What package type does the MBRB8H100T4G come in? It comes in a TO-263-2 (D2PAK) package.
- Is the MBRB8H100T4G RoHS compliant? Yes, it is RoHS compliant.
- What are the key features of the MBRB8H100T4G? Key features include state-of-the-art geometry, low forward voltage drop, high current handling, and RoHS compliance.
- What are some common applications for the MBRB8H100T4G? Common applications include power supplies, DC-DC converters, switch-mode power supplies, and high-frequency rectification.
- Why is the MBRB8H100T4G suitable for high-frequency applications? It is suitable due to its low forward voltage drop and high current handling capabilities.
- Can the MBRB8H100T4G be used in automotive applications? Yes, it can be used in automotive and industrial power systems.
- Where can I find detailed specifications for the MBRB8H100T4G? Detailed specifications can be found in the datasheet available on onsemi’s official website and other electronic component distributors.
