Overview

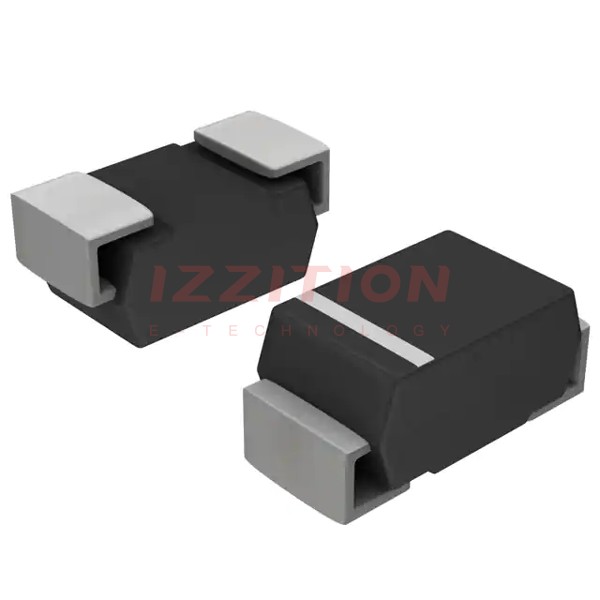

The MBRA210ET3G is a surface mount Schottky power rectifier produced by onsemi. This component is designed for high-efficiency rectification in various electronic applications. It features a compact SMA (DO-214AC) package, making it suitable for space-constrained designs. The MBRA210ET3G is known for its low forward voltage drop and high current handling capabilities, which are essential for efficient power management in modern electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Forward Voltage (Vf) | 500 mV @ 2A |
| Forward Surge Current (Ifsm) | 100 A |
| Reverse Current (Ir) | 15 uA |
| Maximum Reverse Voltage (Vr) | 10 V |
| Maximum Average Rectified Current (Io) | 2 A |
| Minimum Operating Temperature | -65°C |
Key Features
- Low forward voltage drop of 500 mV at 2A, reducing power losses and increasing efficiency.
- High forward surge current capability of 100 A, providing robust protection against transient conditions.
- Low reverse current of 15 uA, minimizing leakage and enhancing overall system reliability.
- Compact SMA (DO-214AC) package, ideal for space-constrained applications.
- RoHS compliant, ensuring environmental sustainability.
Applications
The MBRA210ET3G is versatile and can be used in a variety of applications, including:
- Power supplies and DC-DC converters.
- Rectifier circuits in consumer electronics and industrial equipment.
- Automotive systems requiring high reliability and efficiency.
- Telecommunication and networking devices.
- General-purpose rectification in electronic circuits.
Q & A
- What is the forward voltage drop of the MBRA210ET3G?
The forward voltage drop of the MBRA210ET3G is 500 mV at 2A. - What is the maximum forward surge current of the MBRA210ET3G?
The maximum forward surge current is 100 A. - What is the reverse current of the MBRA210ET3G?
The reverse current is 15 uA. - What is the maximum reverse voltage of the MBRA210ET3G?
The maximum reverse voltage is 10 V. - What is the minimum operating temperature of the MBRA210ET3G?
The minimum operating temperature is -65°C. - Is the MBRA210ET3G RoHS compliant?
Yes, the MBRA210ET3G is RoHS compliant. - What is the package type of the MBRA210ET3G?
The package type is SMA (DO-214AC). - What are some common applications of the MBRA210ET3G?
Common applications include power supplies, DC-DC converters, automotive systems, and general-purpose rectification in electronic circuits. - What is the maximum average rectified current of the MBRA210ET3G?
The maximum average rectified current is 2 A. - Where can I find detailed specifications for the MBRA210ET3G?
Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser and LCSC.
