Overview
The FXMA108BQX, produced by onsemi, is a configurable dual-voltage supply translator designed for both unidirectional and bidirectional voltage translation between two logic levels. This device allows translation between voltages as high as 5.5 V and as low as 1.65 V, making it versatile for various applications. The FXMA108BQX features auto-direction sensing, eliminating the need for a direction control pin, and supports power-up sequences where either VCC can be powered up first. It also includes 3-state outputs and power-off protection, ensuring reliable operation in diverse environments.
Key Specifications
| Parameter | Condition | Min | Max | Unit |
|---|---|---|---|---|
| VCC Supply Voltage (VCCA, VCCB) | -0.5 | 7.0 | V | |
| DC Input Voltage (VIN) | I/O Side A and B | -0.5 | 7.0 | V |
| Output Voltage (VO) | Output 3-State | -0.5 | 7.0 | V |
| Output Active Voltage (An, Bn) | -0.5 | VCCA + 0.5 / VCCB + 0.5 | V | |
| Quiescent Supply Current (ICCA/B) | VIN = VCCI or GND, IO = 0, /OE = GND | 10 μA | μA | |
| Output Rise Time (trise) | VCCB = 4.5 V to 5.5 V | 3.5 ns | ns | |
| Output Fall Time (tfall) | VCCB = 4.5 V to 5.5 V | 3.5 ns | ns | |
| Maximum Data Rate | VCCA = 4.5 V to 5.5 V, VCCB = 4.5 V to 5.5 V | 100 Mbps | Mbps | |
| ESD Protection | Human Body Model (B Port I/O to GND) | 8 kV | kV | |

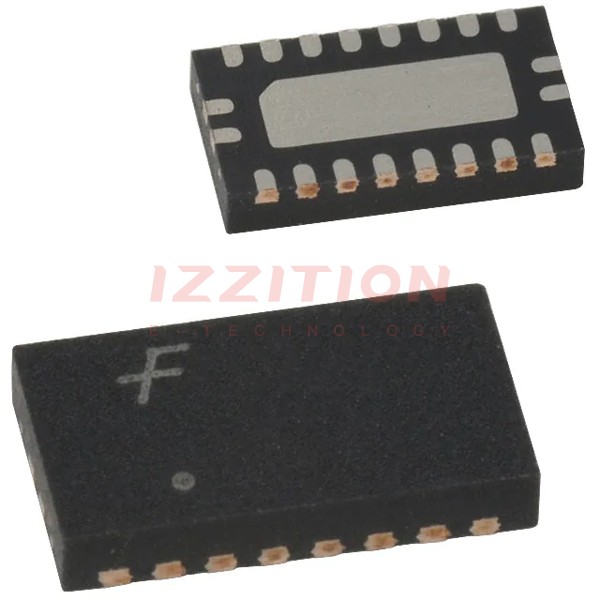

| Package | 20-Terminal WQFN |
Key Features
- Bi-Directional Interface: Supports voltage translation between two levels from 1.65 V to 5.5 V.
- Configurable Inputs and Outputs: Inputs and outputs track VCC levels.
- Non-Preferential Power-Up: Either VCC can be powered up first.
- 3-State Outputs: Outputs remain in 3-state until active VCC level is reached and switch to 3-state if either VCC is at GND.
- Power-Off Protection: Internal power-down control circuits protect the device.
- Bus Hold on Data Inputs: Eliminates the need for pull-up resistors.
- Auto Direction Sensing: No direction control pin needed; the device automatically senses input transitions.
- High Throughput: Up to 80 Mbps when translating between 2.5 V and 5.0 V.
- ESD Protection: Exceeds 8 kV Human Body Model (B Port I/O to GND) and 4 kV Human Body Model (A Port I/O to GND).
Applications
- Cell Phones
- PDA (Personal Digital Assistants)
- Digital Cameras
- Portable GPS Devices
- Storage Devices
Q & A
- What is the FXMA108BQX used for?
The FXMA108BQX is a dual-voltage supply translator used for both unidirectional and bidirectional voltage translation between two logic levels.
- What voltage ranges does the FXMA108BQX support?
The device supports voltage translation between levels as high as 5.5 V and as low as 1.65 V.
- Does the FXMA108BQX require a direction control pin?
No, the FXMA108BQX features auto-direction sensing, eliminating the need for a direction control pin.
- What is the maximum data rate of the FXMA108BQX?
The maximum data rate is up to 80 Mbps when translating between 2.5 V and 5.0 V.
- What kind of ESD protection does the FXMA108BQX offer?
The device offers ESD protection exceeding 8 kV Human Body Model (B Port I/O to GND) and 4 kV Human Body Model (A Port I/O to GND).
- What package type is the FXMA108BQX available in?
The FXMA108BQX is packaged in a 20-Terminal WQFN.
- Can either VCC be powered up first in the FXMA108BQX?
Yes, the device allows either VCC to be powered up first.
- What happens to the outputs if either VCC is at GND?
The outputs switch to a 3-state condition if either VCC is at GND.
- Does the FXMA108BQX require pull-up or pull-down resistors?
No, the device has bus-hold circuits that eliminate the need for pull-up or pull-down resistors.
- What is the operating temperature range of the FXMA108BQX?
The operating temperature range is from -40°C to 85°C.
