Overview

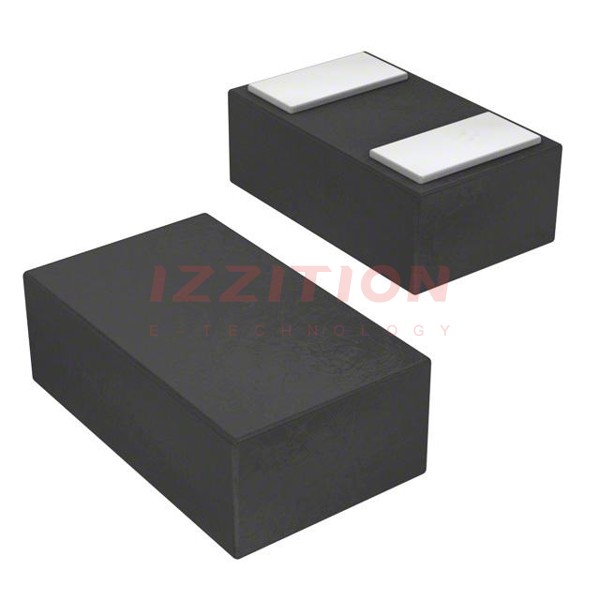

The ESD8011MUT5G ESD protection diodes, manufactured by onsemi, are designed to protect high-speed data lines from electrostatic discharge (ESD). These diodes are characterized by their ultra-low capacitance and low ESD clamping voltage, making them an ideal solution for protecting voltage-sensitive high-speed data lines.
Key Specifications
| Parameter | Value |
|---|---|
| Capacitance (I/O to GND) | 0.10 pF (Typical) |
| ESD Protection Standard | IEC 61000-4-2 (Level 4) |
| ESD Clamping Voltage | Low |
| Leakage Current | Low |
| Response Time | Fast |
| Package Type | SMD |
| RoHS Compliance | Yes |
| Pb-Free, Halogen Free/BFR Free | Yes |
Key Features
- Ultra-low capacitance (0.10 pF Typ, I/O to GND)
- Low ESD clamping voltage
- Fast response times
- Low leakage current
- Pb-Free, Halogen Free/BFR Free and RoHS compliant
- Available in SMD package
Applications
- USB 3.x
- MHL 2.0
- SATA/SAS
- PCI Express
- Automotive Infotainment
- Computing & Wearables
Q & A
- What is the primary function of the ESD8011MUT5G diode? The primary function is to protect high-speed data lines from electrostatic discharge (ESD).
- What is the typical capacitance of the ESD8011MUT5G? The typical capacitance is 0.10 pF (I/O to GND).
- Which ESD protection standard does the ESD8011MUT5G comply with? It complies with IEC 61000-4-2 (Level 4).
- Is the ESD8011MUT5G RoHS compliant? Yes, it is RoHS compliant.
- What are the key features of the ESD8011MUT5G? Ultra-low capacitance, low ESD clamping voltage, fast response times, and low leakage current.
- In which applications is the ESD8011MUT5G commonly used? USB 3.x, MHL 2.0, SATA/SAS, PCI Express, Automotive Infotainment, and Computing & Wearables.
- Is the ESD8011MUT5G Pb-Free and Halogen Free/BFR Free? Yes, it is Pb-Free and Halogen Free/BFR Free.
- What package type is the ESD8011MUT5G available in? It is available in SMD package.
- How does the ESD8011MUT5G protect high-speed data lines? It protects high-speed data lines through ultra-low capacitance and low ESD clamping voltage.
- Where can I find more detailed specifications for the ESD8011MUT5G? Detailed specifications can be found on the onsemi official website, datasheets, and through distributors like Mouser Electronics.
