Overview

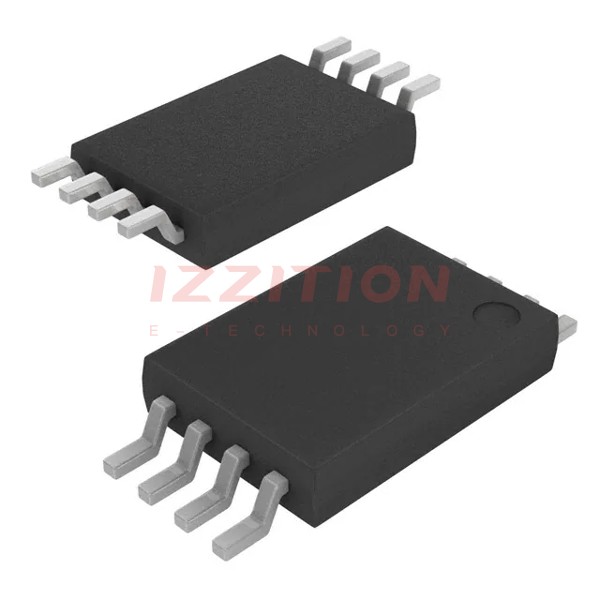

The CAT24C128YIGT3JN is a 128KB I2C Serial EEPROM (Electrically Erasable Programmable Read-Only Memory) produced by onsemi. This component is designed for applications requiring non-volatile memory storage and is particularly suited for use in a variety of electronic systems due to its compact size and versatile operating conditions.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage - Supply | 1.8V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm) |
| Memory Size | 128KB (16,384 bytes) |
| Interface | I2C |
| Frequency | Up to 1 MHz |
Key Features
- 128KB of non-volatile memory, organized as 16,384 bytes of 8 bits each.
- I2C serial interface with up to 1 MHz clock frequency.
- Operating voltage range from 1.8V to 5.5V.
- Wide operating temperature range from -40°C to 85°C.
- Low power consumption and high reliability.
- Surface mount package in 8-TSSOP (0.173", 4.40mm).
Applications
The CAT24C128YIGT3JN is suitable for a wide range of applications, including:
- Consumer electronics such as set-top boxes, digital TVs, and audio equipment.
- Industrial control systems and automation.
- Automotive systems for data logging and configuration storage.
- Medical devices requiring non-volatile memory.
- IoT devices and smart home appliances.
Q & A
- What is the memory size of the CAT24C128YIGT3JN?
The CAT24C128YIGT3JN has a memory size of 128KB, organized as 16,384 bytes of 8 bits each. - What is the operating voltage range of the CAT24C128YIGT3JN?
The operating voltage range is from 1.8V to 5.5V. - What is the interface type of the CAT24C128YIGT3JN?
The interface type is I2C. - What is the maximum clock frequency of the I2C interface?
The maximum clock frequency is up to 1 MHz. - What is the operating temperature range of the CAT24C128YIGT3JN?
The operating temperature range is from -40°C to 85°C. - What is the package type of the CAT24C128YIGT3JN?
The package type is 8-TSSOP (0.173", 4.40mm). - Is the CAT24C128YIGT3JN suitable for automotive applications?
Yes, it is suitable for automotive applications due to its wide operating temperature range and reliability. - Can the CAT24C128YIGT3JN be used in consumer electronics?
Yes, it is commonly used in consumer electronics such as set-top boxes, digital TVs, and audio equipment. - What are some typical applications of the CAT24C128YIGT3JN in industrial settings?
It is used in industrial control systems and automation. - Is the CAT24C128YIGT3JN suitable for medical devices?
Yes, it is suitable for medical devices requiring non-volatile memory.
