Overview

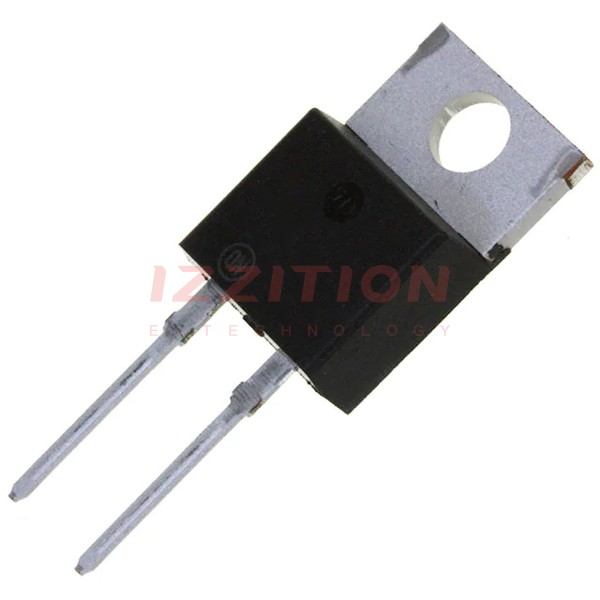

The BYW29-200G is an UltraFast rectifier diode manufactured by onsemi. This device is designed for high-performance applications, particularly in switching power supplies, inverters, and as free-wheeling diodes. It is known for its ability to efficiently convert AC power into DC power, making it a crucial component in various power management systems.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (V) | 200V |
| Load Current (A) | 8 A |
| Package / Case | TO-220AC-2 |
| Pins | 2 |
| Temperature Range | -65°C to +175°C |
| Technology | Ultrafast Switching |
| Height | 9.27 mm |
| Length | 10.29 mm |
Key Features
- Ultrafast switching technology for high-efficiency power conversion.
- High voltage rating of 200V, suitable for demanding power supply applications.
- High load current capability of up to 8 A.
- Wide operating temperature range from -65°C to +175°C.
- TO-220AC-2 package for easy mounting and heat dissipation.
Applications
- Switching power supplies: Ideal for use in SMPS due to its ultrafast switching capabilities.
- Inverters: Suitable for inverter applications requiring high efficiency and reliability.
- Free-wheeling diodes: Used in various power management circuits to prevent backflow of current.
- General-purpose rectification: Can be used in a variety of DC power conversion applications.
Q & A
- What is the voltage rating of the BYW29-200G diode? The voltage rating of the BYW29-200G diode is 200V.
- What is the maximum load current of the BYW29-200G? The maximum load current is 8 A.
- What is the package type of the BYW29-200G? The package type is TO-220AC-2.
- What is the temperature range of the BYW29-200G? The temperature range is from -65°C to +175°C.
- What technology does the BYW29-200G use? The BYW29-200G uses ultrafast switching technology.
- What are some common applications of the BYW29-200G? Common applications include switching power supplies, inverters, and free-wheeling diodes.
- Is the BYW29-200G suitable for high-power applications? Yes, it is suitable for high-power applications due to its high voltage and current ratings.
- What is the height and length of the BYW29-200G package? The height is 9.27 mm and the length is 10.29 mm.
- Is the BYW29-200G RoHS compliant? Yes, the BYW29-200G is RoHS compliant.
- Where can I find more detailed specifications for the BYW29-200G? Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser and LCSC.
