BAV70DXV6T1G
  • Share:

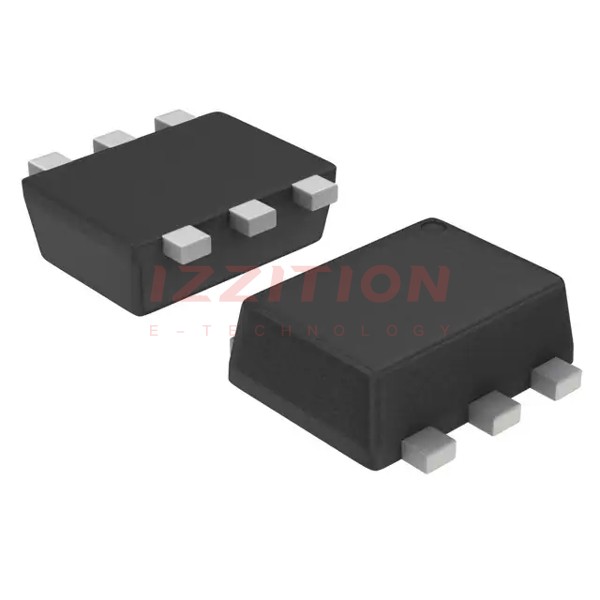

onsemi BAV70DXV6T1G

Manufacturer No:
BAV70DXV6T1G
Manufacturer:
onsemi
Package:
Cut Tape (CT)
Description:
DIODE SWITCH DUAL CC 70V SOT563
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BAV70DXV6T1G is a monolithic dual switching diode with a common cathode configuration, manufactured by onsemi. This component is designed for high-speed switching applications and offers excellent performance characteristics such as low forward voltage and fast recovery time. It is suitable for a variety of electronic circuits where fast switching and reliable operation are critical.

Key Specifications

ParameterValue
Recovery Time6 ns
Vf - Forward Voltage1.25 V
Ir - Reverse Current2.5 uA
Minimum Operating Temperature-55°C

Key Features

  • Monolithic dual switching diode with common cathode configuration
  • Fast recovery time of 6 ns, making it suitable for high-speed applications
  • Low forward voltage of 1.25 V, reducing power consumption
  • Low reverse current of 2.5 uA, enhancing overall efficiency
  • Wide operating temperature range from -55°C to 150°C, ensuring reliability in various environments

Applications

The BAV70DXV6T1G is versatile and can be used in a range of applications, including:

  • High-speed switching circuits
  • Signal processing and conditioning
  • Power supply and voltage regulation
  • Communication systems and data transmission
  • Automotive and industrial control systems

Q & A

  1. What is the recovery time of the BAV70DXV6T1G? The recovery time is 6 ns.
  2. What is the forward voltage (Vf) of the BAV70DXV6T1G? The forward voltage is 1.25 V.
  3. What is the reverse current (Ir) of the BAV70DXV6T1G? The reverse current is 2.5 uA.
  4. What is the minimum operating temperature of the BAV70DXV6T1G? The minimum operating temperature is -55°C.
  5. What type of configuration does the BAV70DXV6T1G have? It has a monolithic dual switching diode with a common cathode configuration.
  6. Where can the BAV70DXV6T1G be used? It can be used in high-speed switching circuits, signal processing, power supply and voltage regulation, communication systems, and automotive and industrial control systems.
  7. Why is the BAV70DXV6T1G suitable for high-speed applications? It is suitable due to its fast recovery time and low forward voltage.
  8. What is the significance of the low reverse current in the BAV70DXV6T1G? The low reverse current enhances the overall efficiency of the component.
  9. Can the BAV70DXV6T1G operate in extreme temperatures? Yes, it can operate from -55°C to 150°C.
  10. Where can I find detailed specifications for the BAV70DXV6T1G? Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser and Digi-Key.

Product Attributes

Diode Configuration:-
Diode Type:-
Voltage - DC Reverse (Vr) (Max):-
Current - Average Rectified (Io) (per Diode):-
Voltage - Forward (Vf) (Max) @ If:-
Speed:-
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:-
Operating Temperature - Junction:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

-
263

Please send RFQ , we will respond immediately.
