Overview

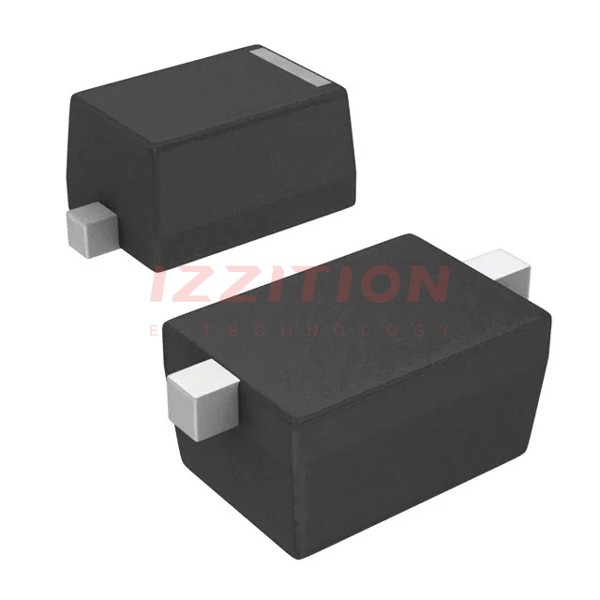

The BAT54XV2 is a 200 mA, 30 V Schottky diode designed by onsemi for high-speed switching applications, circuit protection, and voltage clamping. This diode is notable for its extremely low forward voltage, which reduces conduction loss. The miniature surface mount package (SOD-523) makes it ideal for hand-held and portable applications where space is limited. The BAT54XV2 is also AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other applications requiring unique site and control change requirements. Additionally, these devices are Pb-free, halogen-free/BFR-free, and RoHS compliant.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Reverse Voltage | VR | 30 | V |
| Forward Current (DC) | IF | 200 | mA |
| Non-Repetitive Peak Forward Current | IFSM | 600 | mA |
| Repetitive Peak Forward Current | IFRM | 300 | mA |
| Forward Voltage | VF | 0.35 (Typ) @ IF = 10 mA | V |
| Junction and Storage Temperature | TJ, Tstg | -55 to 125 | °C |
| Thermal Resistance, Junction-to-Ambient | RJA | 635 | °C/W |
| Total Capacitance | CT | 7.6 (Typ) @ VR = 1.0 V, f = 1.0 MHz | pF |
Key Features
- Extremely fast switching speed
- Low forward voltage (VF) of 0.35 V (Typ) @ IF = 10 mA
- Miniature surface mount package (SOD-523) suitable for hand-held and portable applications
- AEC-Q101 qualified and PPAP capable for automotive and other specific applications
- Pb-free, halogen-free/BFR-free, and RoHS compliant
Applications
- High-speed switching applications
- Circuit protection
- Voltage clamping
- General use in electronic circuits
- Automotive and other applications requiring unique site and control change requirements
Q & A
- What is the maximum reverse voltage of the BAT54XV2?
The maximum reverse voltage is 30 V. - What is the typical forward voltage of the BAT54XV2?
The typical forward voltage is 0.35 V at IF = 10 mA. - What is the maximum forward current (DC) of the BAT54XV2?
The maximum forward current (DC) is 200 mA. - Is the BAT54XV2 suitable for automotive applications?
Yes, it is AEC-Q101 qualified and PPAP capable. - What is the package type of the BAT54XV2?
The package type is SOD-523. - Is the BAT54XV2 RoHS compliant?
Yes, it is Pb-free, halogen-free/BFR-free, and RoHS compliant. - What is the thermal resistance, junction-to-ambient of the BAT54XV2?
The thermal resistance, junction-to-ambient is 635 °C/W. - What is the total capacitance of the BAT54XV2 at VR = 1.0 V and f = 1.0 MHz?
The total capacitance is typically 7.6 pF. - What are the junction and storage temperature ranges for the BAT54XV2?
The junction and storage temperature ranges are -55 to 125 °C. - What is the non-repetitive peak forward current of the BAT54XV2?
The non-repetitive peak forward current is 600 mA.
