Overview

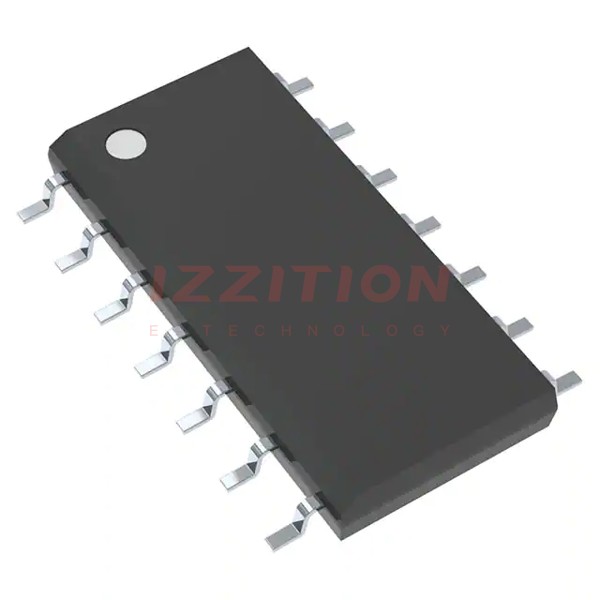

The 74HC86DR2G is a quad 2-input Exclusive OR (XOR) gate integrated circuit produced by onsemi. This component is part of the 74HC series, known for its high-speed CMOS logic. The 74HC86DR2G is packaged in a 14-pin SOIC (Small Outline Integrated Circuit) and is lead-free and RoHS compliant. It operates over a wide voltage range from 2 V to 6 V, making it versatile for various digital logic applications.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer / Brand | AMI Semiconductor / ON Semiconductor |
| Part Number | 74HC86DR2G |
| Category | Integrated Circuits (ICs) > Logic - Gates and Inverters |
| Description | IC GATE XOR 4CH 2-INP 14SOIC |
| Voltage - Supply | 2 V ~ 6 V |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Operating Temperature | -55°C ~ 125°C |
| Number of Inputs | 2 |
| Number of Circuits | 4 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Logic Type | XOR (Exclusive OR) |
| Logic Level - Low | 0.5 V ~ 1.8 V |
| Logic Level - High | 1.5 V ~ 4.2 V |
| Current - Quiescent (Max) | 2µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
Key Features
- Quad 2-input Exclusive OR (XOR) gates in a single package.
- High-speed CMOS logic with low power consumption.
- Wide operating voltage range: 2 V to 6 V.
- Lead-free and RoHS compliant.
- Surface mount SOIC-14 package.
- Operating temperature range: -55°C to 125°C.
- Low quiescent current: 2µA (max).
- High output current capability: 5.2mA (both high and low).
Applications
The 74HC86DR2G is suitable for a variety of digital logic applications, including:
- Digital logic circuits requiring Exclusive OR operations.
- Microcontroller and microprocessor systems.
- Communication and networking equipment.
- Industrial control systems.
- Consumer electronics and appliances.
Q & A
- What is the function of the 74HC86DR2G?
The 74HC86DR2G is a quad 2-input Exclusive OR (XOR) gate integrated circuit.
- What is the package type of the 74HC86DR2G?
The 74HC86DR2G is packaged in a 14-pin SOIC (Small Outline Integrated Circuit).
- What is the operating voltage range of the 74HC86DR2G?
The operating voltage range is from 2 V to 6 V.
- Is the 74HC86DR2G lead-free and RoHS compliant?
Yes, the 74HC86DR2G is lead-free and RoHS compliant.
- What is the maximum propagation delay of the 74HC86DR2G?
The maximum propagation delay is 17ns at 6V with a 50pF load.
- What is the quiescent current of the 74HC86DR2G?
The quiescent current is 2µA (max).
- What is the output current capability of the 74HC86DR2G?
The output current capability is 5.2mA for both high and low outputs.
- What is the operating temperature range of the 74HC86DR2G?
The operating temperature range is from -55°C to 125°C.
- What type of logic does the 74HC86DR2G use?
The 74HC86DR2G uses high-speed CMOS logic.
- What are some common applications of the 74HC86DR2G?
Common applications include digital logic circuits, microcontroller and microprocessor systems, communication and networking equipment, industrial control systems, and consumer electronics.
