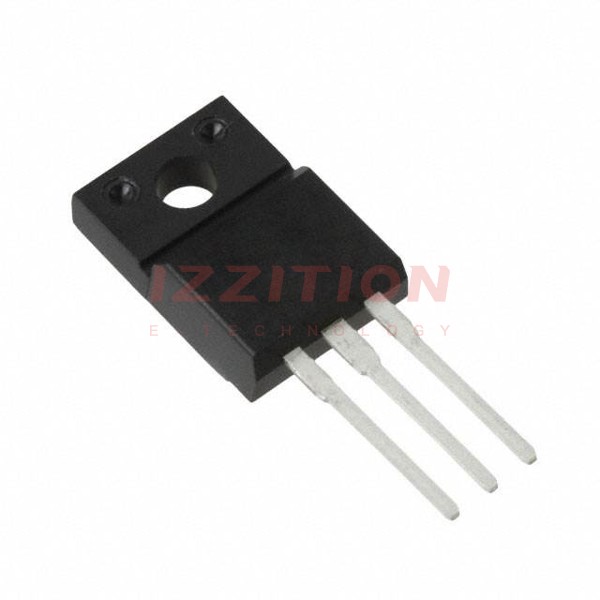

onsemi 2SA2210-1E

Manufacturer No:
2SA2210-1E
Manufacturer:
onsemi
Package:
Tube
Description:
TRANS PNP 50V 20A TO220F-3SG
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2SA2210-1E is a high-performance PNP bipolar transistor manufactured by onsemi. This device is designed for high-current and high-voltage applications, making it suitable for a variety of industrial and automotive uses. The transistor features a TO-220F-3SG package, which is lead-free and compliant with current environmental standards.

Key Specifications

Parameter Symbol Conditions Min Typ Max Unit
Collector-to-Base Voltage VCBO - - -50 V
Collector-to-Emitter Voltage VCEO - - -50 V
Emitter-to-Base Voltage VEBO - - -6 V
Collector Current IC - - -20 A
Collector Current (Pulse) ICP - - -25 A
Base Current IB - - -3 A
Collector Dissipation PC Tc=25°C - 2 W
Junction Temperature Tj - - 150 °C
Storage Temperature Tstg - -55 to +150 °C
DC Current Gain hFE VCE=-2V, IC=-1A 150 - 450 -
Gain-Bandwidth Product fT VCE=-10V, IC=-1A - 140 - MHz
Collector-to-Emitter Saturation Voltage VCE(sat) IC=-7A, IB=-350mA - -200 -500 mV
Base-to-Emitter Saturation Voltage VBE(sat) IC=-7A, IB=-350mA - -1.2 - V

Key Features

  • Adoption of MBIT Process: Enhances the transistor's performance and reliability.
  • Low Collector-to-Emitter Saturation Voltage: Reduces power losses and improves efficiency.
  • Large Current Capacitance: Supports high-current applications.
  • High-Speed Switching: Suitable for applications requiring fast switching times.
  • Pb-Free Device: Compliant with environmental regulations.

Applications

  • Relay Drivers: Used in relay control circuits due to its high current and voltage handling capabilities.
  • Lamp Drivers: Suitable for driving lamps in various applications.
  • Motor Drivers: Used in motor control circuits requiring high current and low saturation voltage.

Q & A

  1. What is the maximum collector current of the 2SA2210-1E transistor?

    The maximum collector current is -20 A.

  2. What is the maximum collector-to-emitter voltage of the 2SA2210-1E transistor?

    The maximum collector-to-emitter voltage is -50 V.

  3. What is the package type of the 2SA2210-1E transistor?

    The package type is TO-220F-3SG.

  4. What is the minimum DC current gain of the 2SA2210-1E transistor?

    The minimum DC current gain is 150.

  5. What are the typical applications of the 2SA2210-1E transistor?

    Typical applications include relay drivers, lamp drivers, and motor drivers.

  6. What is the collector-to-emitter saturation voltage of the 2SA2210-1E transistor?

    The collector-to-emitter saturation voltage is typically -200 mV to -500 mV.

  7. Is the 2SA2210-1E transistor Pb-free?

    Yes, the 2SA2210-1E transistor is Pb-free.

  8. What is the maximum junction temperature of the 2SA2210-1E transistor?

    The maximum junction temperature is 150°C.

  9. What is the storage temperature range for the 2SA2210-1E transistor?

    The storage temperature range is -55°C to +150°C.

  10. What is the gain-bandwidth product of the 2SA2210-1E transistor?

    The gain-bandwidth product is typically 140 MHz.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):20 A
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 350mA, 7A
Current - Collector Cutoff (Max):10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:150 @ 1A, 2V
Power - Max:2 W
Frequency - Transition:140MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220F-3SG
