Overview
The SPC5775EDK3MME3R is a 32-bit dual-core microcontroller from NXP USA Inc., specifically designed for Battery Management Systems (BMS) and inverter applications in hybrid and electric vehicles (HEV/EV). This microcontroller is part of the MPC5775B/E series, known for its high reliability and performance in demanding automotive environments.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller Type | 32-Bit Dual-Core |
| Core Frequency | 264 MHz |
| Flash Memory | 4 MB (4M x 8) |

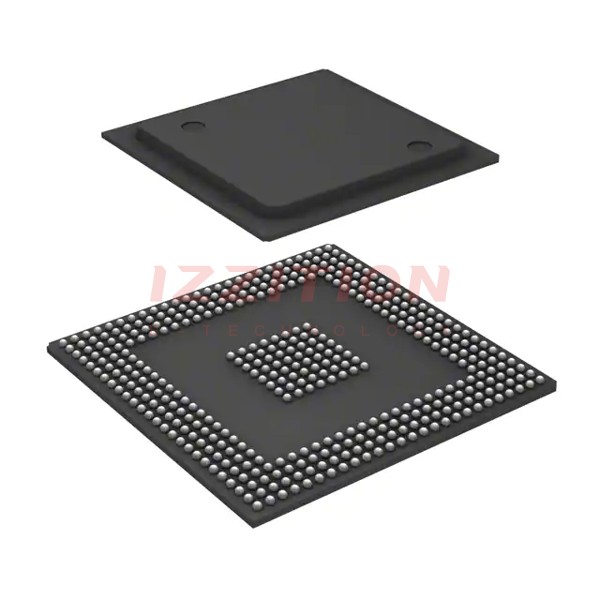

| Package Type | 416-MAPBGA (27x27 mm) |
| Environmental Compliance | PbFree, EU RoHS, Halogen Free, REACH SVHC compliant |
| Operating Temperature | TBD (Refer to datasheet for specific temperature range) |
Key Features
- Dual-core architecture for enhanced processing power and redundancy.
- High-speed flash memory of 4 MB.
- Advanced safety and security features tailored for automotive applications.
- Comprehensive set of peripherals including timers, UARTs, and CAN interfaces.
- Support for high-temperature operation, making it suitable for harsh automotive environments.
Applications
The SPC5775EDK3MME3R microcontroller is primarily used in:
- Battery Management Systems (BMS) for electric and hybrid vehicles.
- Inverter applications in HEV/EV systems.
- Other high-reliability automotive control systems requiring advanced safety and security features.
Q & A
- What is the primary application of the SPC5775EDK3MME3R microcontroller?
The primary application is in Battery Management Systems (BMS) and inverter applications for hybrid and electric vehicles. - What is the core frequency of the SPC5775EDK3MME3R microcontroller?
The core frequency is 264 MHz. - How much flash memory does the SPC5775EDK3MME3R microcontroller have?
The microcontroller has 4 MB of flash memory. - What is the package type of the SPC5775EDK3MME3R microcontroller?
The package type is 416-MAPBGA (27x27 mm). - Is the SPC5775EDK3MME3R microcontroller environmentally compliant?
Yes, it is PbFree, EU RoHS, Halogen Free, and REACH SVHC compliant. - What are the key safety features of the SPC5775EDK3MME3R microcontroller?
The microcontroller includes advanced safety and security features tailored for automotive applications. - Can the SPC5775EDK3MME3R microcontroller operate in high-temperature environments?
Yes, it is designed to operate in harsh automotive environments, including high temperatures. - What peripherals does the SPC5775EDK3MME3R microcontroller support?
The microcontroller supports a comprehensive set of peripherals including timers, UARTs, and CAN interfaces. - Where can I find detailed specifications and datasheets for the SPC5775EDK3MME3R microcontroller?
Detailed specifications and datasheets can be found on the NXP Semiconductors website and other authorized distributors like Digi-Key. - Is the SPC5775EDK3MME3R microcontroller suitable for other automotive applications beyond BMS and inverter systems?
Yes, it can be used in other high-reliability automotive control systems requiring advanced safety and security features.
