Overview

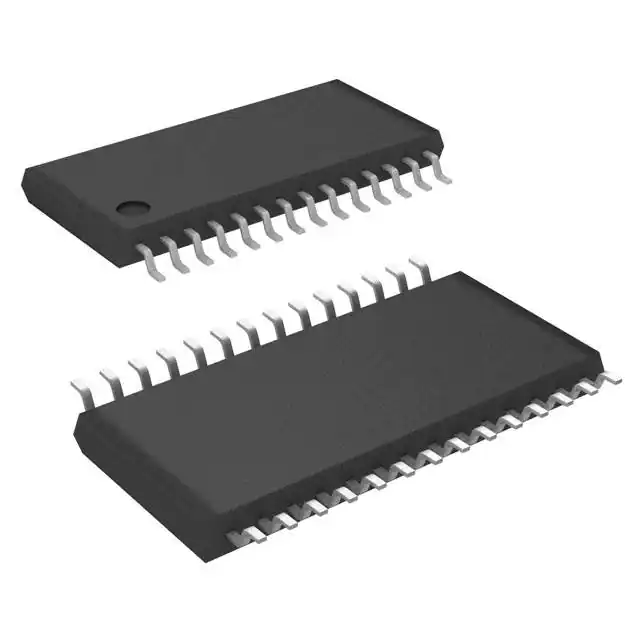

The S9S08SL8F1MTLR is an 8-bit microcontroller from NXP USA Inc., part of the S08 series. This microcontroller is designed to provide a robust and efficient solution for various embedded system applications. It features an 8KB FLASH memory, which is organized as 8K x 8 bits, and operates at a maximum frequency of 40MHz. The device is packaged in a 28-TSSOP (Thin Shrink Small Outline Package) with a width of 0.173 inches (4.40mm), making it suitable for compact designs.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | S9S08SL8F1MTLR |
| Package Type | 28-TSSOP (0.173, 4.40mm Width) |
| Core Type | 8-Bit HCS08 CPU |
| Maximum Frequency | 40MHz |
| FLASH Memory | 8KB (8K x 8 bits) |
| Operating Voltage | 2.7V ~ 5.5V |
| Peripherals | LVD, POR, PWM, WDT, ADC (16x10b), SCI, SPI, IIC, TPM, RTC |
| General Purpose I/O Pins | 22 |
| Interrupt Pins | 16 |
Key Features
- High-Performance CPU: The S9S08SL8F1MTLR features an 8-bit HCS08 CPU with a maximum frequency of 40MHz.
- FLASH Memory: It includes 8KB of FLASH memory, allowing for efficient program storage and execution.
- Peripheral Set: The microcontroller is equipped with a range of peripherals including Low Voltage Detect (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), Watchdog Timer (WDT), Analog-to-Digital Converter (ADC), Serial Communication Interface (SCI), Serial Peripheral Interface (SPI), Inter-Integrated Circuit (IIC), Timer Pulse-Width Modulator (TPM), and Real-Time Counter (RTC).
- Power Management: It supports various power-saving modes such as Run, Active Background, Wait, and Stop modes to optimize power consumption.
- I/O Capabilities: The device includes 22 general-purpose I/O pins and 16 interrupt pins with selectable polarity, hysteresis, and configurable pull-up devices.
Applications
The S9S08SL8F1MTLR microcontroller is versatile and can be used in a variety of applications, including:
- Automotive Systems: Due to its robust peripherals and power management features, it is suitable for automotive control systems.
- Industrial Control Systems: It can be used in industrial automation, motor control, and sensor interfaces.
- Consumer Electronics: The microcontroller can be applied in consumer electronics such as home appliances and personal devices.
- Medical Devices: Its reliability and low power consumption make it a candidate for medical device applications.
Q & A
- What is the maximum operating frequency of the S9S08SL8F1MTLR microcontroller?
The maximum operating frequency is 40MHz.
- What type of package does the S9S08SL8F1MTLR come in?
The microcontroller is packaged in a 28-TSSOP (Thin Shrink Small Outline Package) with a width of 0.173 inches (4.40mm).
- How much FLASH memory does the S9S08SL8F1MTLR have?
The device includes 8KB of FLASH memory, organized as 8K x 8 bits.
- What are the operating voltage ranges for the S9S08SL8F1MTLR?
The operating voltage ranges from 2.7V to 5.5V.
- What peripherals are available on the S9S08SL8F1MTLR?
The microcontroller includes LVD, POR, PWM, WDT, ADC, SCI, SPI, IIC, TPM, and RTC.
- How many general-purpose I/O pins does the S9S08SL8F1MTLR have?
The device has 22 general-purpose I/O pins.
- What are the power-saving modes supported by the S9S08SL8F1MTLR?
The microcontroller supports Run, Active Background, Wait, and Stop modes.
- Is the S9S08SL8F1MTLR suitable for automotive applications?
Yes, it is suitable due to its robust peripherals and power management features.
- Can the S9S08SL8F1MTLR be used in medical devices?
Yes, its reliability and low power consumption make it a candidate for medical device applications.
- Where can I find detailed documentation for the S9S08SL8F1MTLR?
Detailed documentation can be found on the NXP website or through authorized distributors like Digi-Key and Utmel.
