Overview
The PXAG30KBA,529 is a member of NXP Semiconductors' XA (eXtended Architecture) family of high-performance 16-bit single-chip microcontrollers. This device is part of the XA-G30 series, known for its robust feature set and versatility in various applications. Although this specific part is no longer in production, it remains relevant for existing designs and legacy systems.
Key Specifications
| Specification | Description |
|---|---|
| Microcontroller Type | 16-bit Single-Chip Microcontroller |
| Memory | 512 B RAM |
| UARTs | 2 UARTs |
| Watchdog | Yes |

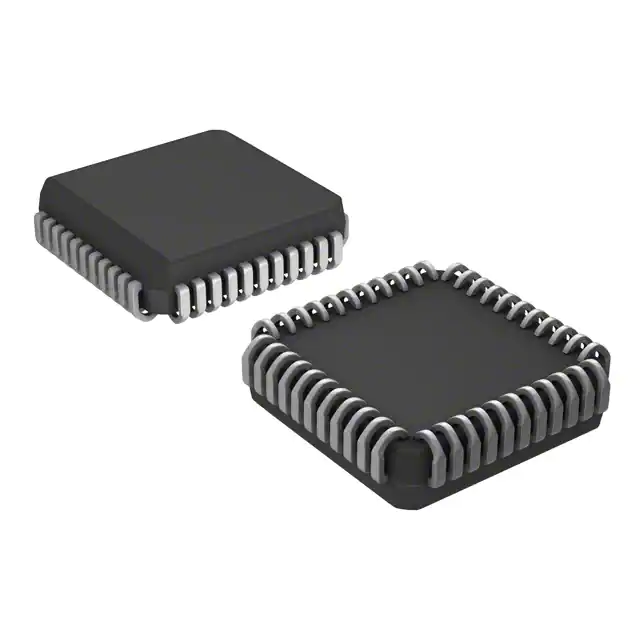

| Package Type | 44-PLCC |
| Supply Voltage | Up to 5.5 V |
| Operating Temperature | -40°C to +85°C |
Key Features
- High-performance 16-bit CPU with extended architecture
- 512 bytes of on-chip RAM
- Two UARTs for serial communication
- On-chip watchdog timer for system reliability
- Various timer/counters with auto-reload and baud rate generator modes
- Support for multiple interrupt sources
Applications
The PXAG30KBA,529 microcontroller is suitable for a wide range of applications, including industrial control systems, automotive electronics, consumer appliances, and medical devices. Its robust feature set and reliability make it a good choice for systems requiring precise control and communication capabilities.
Q & A
- What is the PXAG30KBA,529 microcontroller?
The PXAG30KBA,529 is a 16-bit single-chip microcontroller from NXP Semiconductors, part of the XA-G30 family. - What is the memory configuration of the PXAG30KBA,529?
The device has 512 bytes of on-chip RAM. - How many UARTs does the PXAG30KBA,529 have?
The microcontroller features two UARTs for serial communication. - Is the PXAG30KBA,529 still in production?
No, this part is no longer manufactured. - What is the typical operating voltage range for the PXAG30KBA,529?
The operating voltage range is up to 5.5 V. - What are some common applications for the PXAG30KBA,529?
It is used in industrial control systems, automotive electronics, consumer appliances, and medical devices. - Does the PXAG30KBA,529 have a watchdog timer?
Yes, it includes an on-chip watchdog timer. - What type of package does the PXAG30KBA,529 come in?
The device is available in a 44-PLCC package. - What are the operating temperature ranges for the PXAG30KBA,529?
The operating temperature range is -40°C to +85°C. - Are there any alternative parts available for the PXAG30KBA,529?
Yes, NXP and other manufacturers offer alternative microcontrollers with similar specifications.
