Overview

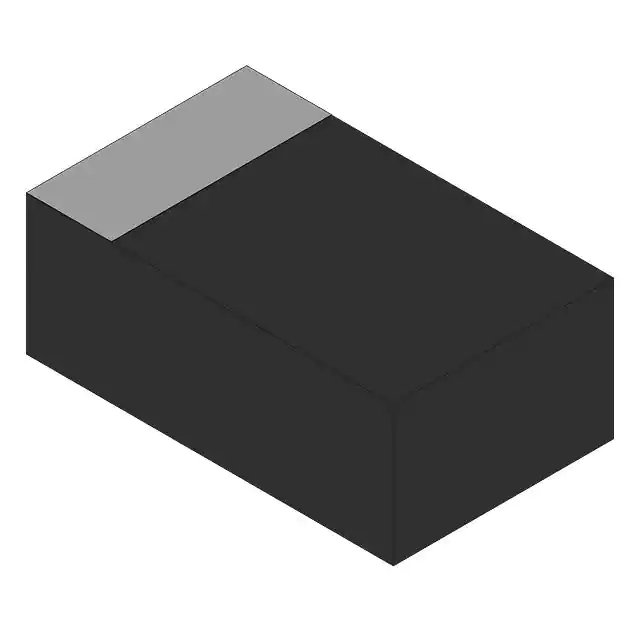

The PMEG3005EL/S500315 is a Schottky rectifier diode produced by NXP USA Inc. This component is designed for high-efficiency applications, particularly in DC-to-DC conversion, switch-mode power supplies, and LED backlights for mobile devices. The diode is packaged in a surface-mount DFN1006-2 format, making it suitable for compact and efficient designs.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (V) | 30 V |
| Current Rating (I) | 500 mA |
| Package Type | DFN1006-2 (Surface Mount) |
| Forward Voltage Drop (Vf) | Typically low, suitable for high-efficiency applications |
| Reverse Leakage Current (Ir) | Low, enhancing overall efficiency |
| Operating Temperature Range | -55°C to 150°C |
| RoHS Compliance | Yes |
Key Features
- Low forward voltage drop (Vf) for high efficiency
- Low reverse leakage current (Ir) for reduced power loss
- Compact DFN1006-2 surface-mount package for space-saving designs
- High reliability and robustness in various operating conditions
- RoHS compliant, ensuring environmental sustainability
Applications
- High-efficiency DC-to-DC conversion
- Switch-mode power supplies
- LED backlights for mobile devices
- General-purpose rectification in electronic circuits
- Power management in portable and consumer electronics
Q & A
- What is the voltage rating of the PMEG3005EL/S500315 diode?
The voltage rating of the PMEG3005EL/S500315 diode is 30 V. - What is the current rating of this diode?
The current rating of this diode is 500 mA. - What package type is used for the PMEG3005EL/S500315?
The PMEG3005EL/S500315 is packaged in a DFN1006-2 surface-mount format. - Is the PMEG3005EL/S500315 RoHS compliant?
Yes, the PMEG3005EL/S500315 is RoHS compliant. - What are some typical applications for this diode?
This diode is typically used in high-efficiency DC-to-DC conversion, switch-mode power supplies, and LED backlights for mobile devices. - What is the operating temperature range for this diode?
The operating temperature range for the PMEG3005EL/S500315 is -55°C to 150°C. - Why is the forward voltage drop important for this diode?
The low forward voltage drop enhances the overall efficiency of the circuit, making it suitable for high-efficiency applications. - How does the low reverse leakage current benefit the circuit?
The low reverse leakage current reduces power loss and improves the overall efficiency of the circuit. - Is this diode suitable for general-purpose rectification?
Yes, this diode is suitable for general-purpose rectification in electronic circuits. - What are the advantages of using a Schottky diode like the PMEG3005EL/S500315?
Schottky diodes like the PMEG3005EL/S500315 offer low forward voltage drop, low reverse leakage current, and high efficiency, making them ideal for various power management applications.
