Overview

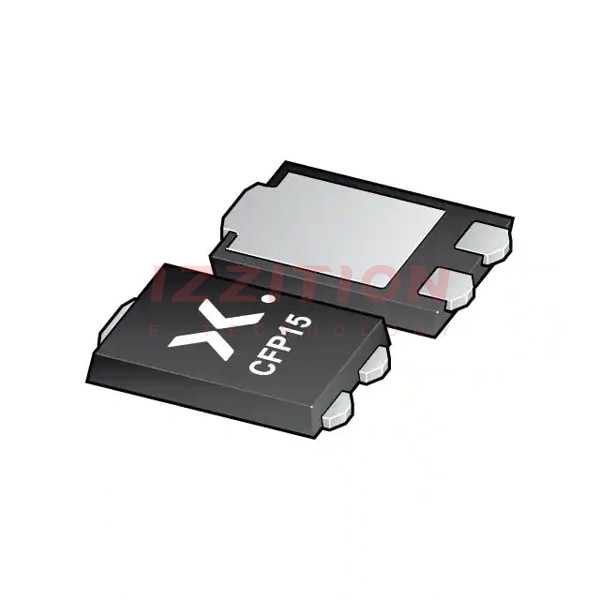

The PMEG100V060ELPD139 is a single rectifier diode produced by NXP USA Inc., a leading semiconductor company. This component is part of the Nexperia product line, which is known for its high-quality and reliable discrete semiconductor solutions. The PMEG100V060ELPD139 is designed to meet the demands of various electronic applications requiring efficient and robust rectification.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | PMEG100V060ELPD139 |
| Manufacturer | NXP USA Inc. |
| Category | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 6 A |
| Voltage - Forward (Vf) (Max) @ If | Specify in datasheet |
| Reverse Recovery Time (trr) | Specify in datasheet |
| Current - Reverse Leakage @ Vr | Specify in datasheet |
| Capacitance @ Vr, F | Specify in datasheet |
| Mounting Type | Through-hole |
| Package / Case | Bulk |
| Operating Temperature - Junction | Specify in datasheet |
Key Features
- High Reverse Voltage: The PMEG100V060ELPD139 can handle a maximum DC reverse voltage of 100 V, making it suitable for applications requiring high voltage rectification.
- High Average Rectified Current: With an average rectified current of 6 A, this diode is capable of handling substantial current loads.
- Low Forward Voltage Drop: The diode is designed to minimize forward voltage drop, ensuring efficient energy transfer.
- Robust Construction: The component is built to withstand various environmental conditions and is suitable for through-hole mounting.
Applications
The PMEG100V060ELPD139 is versatile and can be used in a variety of applications, including:
- Power Supplies: For rectification and voltage regulation in power supply units.
- Motor Control: In motor control circuits where high current and voltage handling are necessary.
- Automotive Systems: In automotive electronics for battery charging, voltage regulation, and other power management tasks.
- Industrial Electronics: For general-purpose rectification in industrial control systems and equipment.
Q & A
- What is the maximum DC reverse voltage of the PMEG100V060ELPD139?
The maximum DC reverse voltage is 100 V. - What is the average rectified current of the PMEG100V060ELPD139?
The average rectified current is 6 A. - What type of package does the PMEG100V060ELPD139 come in?
The PMEG100V060ELPD139 is available in bulk packaging. - What are the typical applications of the PMEG100V060ELPD139?
Typical applications include power supplies, motor control, automotive systems, and industrial electronics. - Where can I find the detailed specifications of the PMEG100V060ELPD139?
Detailed specifications can be found in the datasheet available on the NXP website or through authorized distributors. - Is the PMEG100V060ELPD139 RoHS compliant?
Yes, the PMEG100V060ELPD139 is RoHS compliant. - What is the operating temperature range of the PMEG100V060ELPD139?
The operating temperature range is specified in the datasheet. - Can the PMEG100V060ELPD139 be used in high-frequency applications?
The suitability for high-frequency applications should be verified from the datasheet and application notes. - How do I obtain the PMEG100V060ELPD139?
You can obtain the PMEG100V060ELPD139 through authorized distributors or by contacting NXP sales directly. - What is the product status of the PMEG100V060ELPD139?
The PMEG100V060ELPD139 is an active product.
