Overview
The MK66FN2M0VLQ18R is a 32-bit microcontroller from NXP USA Inc., part of the Kinetis K66 sub-family. This microcontroller is based on the ARM Cortex-M4F core and is designed to provide high performance, extensive memory options, and advanced peripheral integration. It is suitable for a wide range of applications requiring robust processing, low power consumption, and multiple communication interfaces.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | MK66FN2M0VLQ18R |
| Core Processor | ARM Cortex-M4F |
| Core Speed | Up to 180 MHz |
| Program Memory | Up to 2 MB Flash |
| RAM | 256 KB |

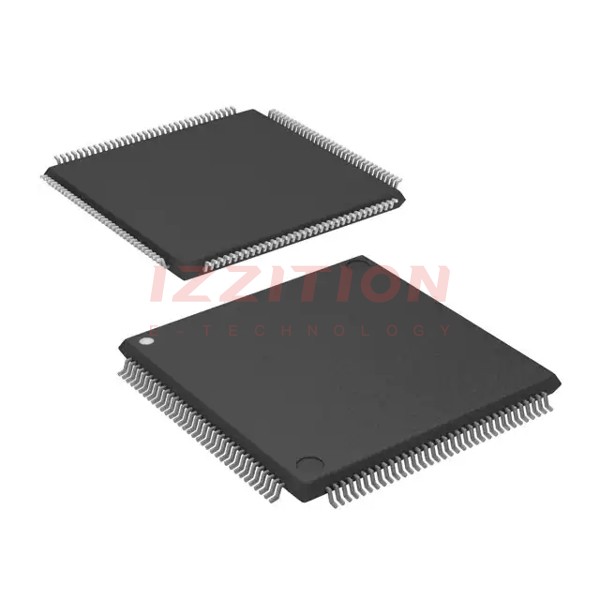

| Package Type | 144-pin LQFP |
| Voltage Supply | 1.71 to 3.6 V |
| Operating Temperature | -40 to 105°C |
| Communication Interfaces | Ethernet, USB, SPI, I2C, UART, SDHC, I2S |
| Analog Modules | 16-bit SAR ADCs, 12-bit DAC, Analog Comparators |
| Timers | Periodic interrupt timers, Low-power timers, PWM modules |
| Security Features | Hardware random-number generator, DES, AES, SHA accelerator |
| Environmental Compliance | ROHS3 Compliant, REACH Unaffected, Lead Free |
Key Features
- High Performance: The MK66FN2M0VLQ18R features an ARM Cortex-M4F core running up to 180 MHz, providing high processing power.
- Extensive Memory Options: Up to 2 MB of program flash memory and 256 KB of SRAM, along with FlexNVM and FlexRAM on certain variants.
- Advanced Peripheral Integration: Includes dual USB, 10/100 Mbit/s Ethernet MAC, SPI, I2C, UART, SDHC, and I2S interfaces.
- Analog Modules: Features 16-bit SAR ADCs, 12-bit DACs, and analog comparators with programmable reference inputs.
- Security Features: Hardware random-number generator, DES, AES, and SHA accelerators for enhanced security.
- Low Power Modes: Multiple low-power modes to optimize power consumption based on application requirements.
- Environmental Compliance: Compliant with ROHS, REACH, and lead-free standards.
Applications
- Industrial Automation: Suitable for control systems, motor control, and industrial communication.
- Medical Devices: Can be used in medical devices requiring high precision and reliability.
- Consumer Electronics: Applicable in smart home devices, wearables, and other consumer electronics.
- Automotive Systems: Used in automotive control units, infotainment systems, and safety features.
- IoT Devices: Ideal for Internet of Things (IoT) applications requiring robust processing and low power consumption.
Q & A
- What is the core processor of the MK66FN2M0VLQ18R?
The core processor is the ARM Cortex-M4F.
- What is the maximum clock speed of the MK66FN2M0VLQ18R?
The maximum clock speed is up to 180 MHz.
- How much program flash memory does the MK66FN2M0VLQ18R have?
It has up to 2 MB of program flash memory.
- What are the communication interfaces available on the MK66FN2M0VLQ18R?
The device includes Ethernet, USB, SPI, I2C, UART, SDHC, and I2S interfaces.
- Does the MK66FN2M0VLQ18R have any security features?
Yes, it includes a hardware random-number generator, DES, AES, and SHA accelerators.
- What is the operating temperature range of the MK66FN2M0VLQ18R?
The operating temperature range is -40 to 105°C.
- Is the MK66FN2M0VLQ18R ROHS compliant?
Yes, it is ROHS3 compliant and lead-free.
- What is the package type of the MK66FN2M0VLQ18R?
The package type is 144-pin LQFP.
- What are some typical applications of the MK66FN2M0VLQ18R?
It is used in industrial automation, medical devices, consumer electronics, automotive systems, and IoT devices.
- Does the MK66FN2M0VLQ18R support low power modes?
Yes, it supports multiple low-power modes to optimize power consumption.
