Overview
The MK65FX1M0VMI18 is a 32-bit microcontroller from NXP USA Inc., part of the Kinetis K65 series. It is built on the Arm Cortex-M4F core, operating at a frequency of 180 MHz. This microcontroller is optimized for applications that require advanced security and encryption features, making it suitable for a wide range of industrial, automotive, and IoT applications.
Key Specifications
| Specification | Detail |
|---|---|
| Core | Arm Cortex-M4F |
| Frequency | 180 MHz |
| Flash Memory | 1 MB (1M x 8) |

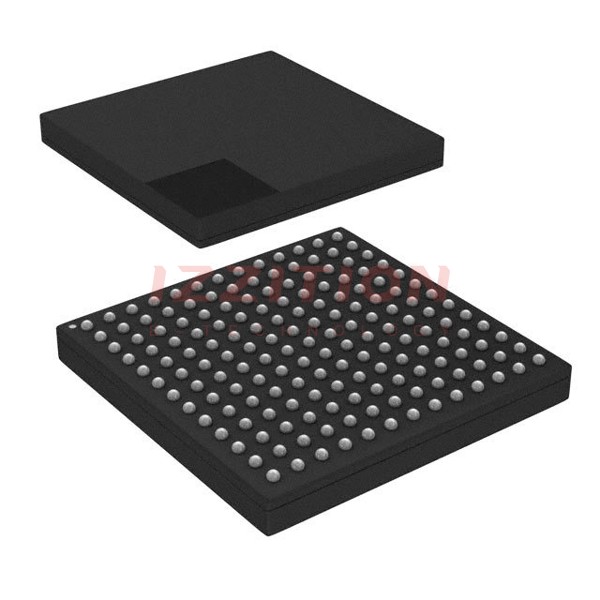

| Package Type | 169-MAPBGA (9x9) |
| USB Interfaces | Dual High-Speed and Full-speed USBs |
| Ethernet | IEEE 1588 Ethernet |
| Security Features | Advanced security encryption |
Key Features
- High-performance Arm Cortex-M4F core with floating-point unit (FPU)
- 1 MB of flash memory and 256 KB of SRAM
- Dual High-Speed and Full-speed USB interfaces
- IEEE 1588 Ethernet support for precise time synchronization
- Advanced security features including encryption and secure boot mechanisms
- Multiple serial communication interfaces (UART, SPI, I2C)
- Integrated analog-to-digital converters (ADCs) and digital-to-analog converters (DACs)
Applications
- Industrial automation and control systems
- Automotive systems requiring advanced security and communication
- Internet of Things (IoT) devices with high-performance and security needs
- Medical devices requiring precise timing and secure data transmission
- Consumer electronics with advanced user interfaces and connectivity
Q & A
- What is the core architecture of the MK65FX1M0VMI18?
The MK65FX1M0VMI18 is based on the Arm Cortex-M4F core. - What is the maximum operating frequency of the MK65FX1M0VMI18?
The maximum operating frequency is 180 MHz. - How much flash memory does the MK65FX1M0VMI18 have?
The MK65FX1M0VMI18 has 1 MB of flash memory. - What type of package does the MK65FX1M0VMI18 come in?
The MK65FX1M0VMI18 comes in a 169-MAPBGA (9x9) package. - Does the MK65FX1M0VMI18 support USB interfaces?
Yes, it supports dual High-Speed and Full-speed USB interfaces. - What is the significance of IEEE 1588 Ethernet in the MK65FX1M0VMI18?
IEEE 1588 Ethernet provides precise time synchronization, which is crucial for many industrial and IoT applications. - What security features are available in the MK65FX1M0VMI18?
The MK65FX1M0VMI18 includes advanced security features such as encryption and secure boot mechanisms. - What are some common applications of the MK65FX1M0VMI18?
Common applications include industrial automation, automotive systems, IoT devices, medical devices, and consumer electronics. - Where can I find detailed design files and footprints for the MK65FX1M0VMI18?
Detailed design files and footprints can be found on the NXP website and other authorized distributors. - How do I ensure secure data transmission with the MK65FX1M0VMI18?
Secure data transmission can be ensured using the advanced security features such as encryption and secure boot mechanisms provided by the microcontroller.
