Overview
The MK65FN2M0VMI18 is a highly versatile microcontroller from the Kinetis K6x series, developed by NXP Semiconductors. It is equipped with a powerful ARM Cortex-M4 core, running at a maximum frequency of 120 MHz. This microcontroller is ideal for a wide range of applications, including IoT devices, industrial control systems, and consumer electronics. With its advanced features, the MK65FN2M0VMI18 provides developers with the flexibility and processing power they need to create innovative solutions.
Key Specifications
| Specification | Details |
|---|---|
| Core | ARM Cortex-M4 with FPU (Floating Point Unit) |
| Operating Frequency | Up to 120 MHz |
| Flash Memory | 2 MB of flash memory for code and data storage |
| SRAM | 512 KB of SRAM for quick data access |

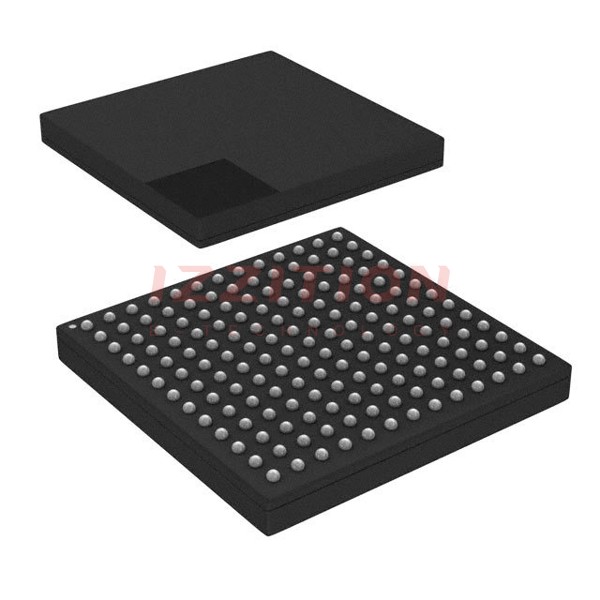

| Package | BGA-169 (169-pin Ball Grid Array) |
| Operating Voltage | 1.71 V to 3.6 V |
| Communication Interfaces | UART, I2C, SPI |
| ADC | 16-channel, 12-bit SAR ADC |
| DMA | 16-channel Direct Memory Access controller |
| Low Power Modes | Multiple low-power operation modes |
| RoHS Status | Lead Free / RoHS Compliant |
Key Features
- Core: ARM Cortex-M4 with FPU (Floating Point Unit) for efficient processing and mathematical computations.
- Memory: 2 MB of flash memory and 512 KB of SRAM for ample code and data storage.
- Communication Interfaces: Supports multiple serial communication interfaces including UART, I2C, and SPI.
- ADC: 16-channel, 12-bit SAR ADC for precise analog-to-digital conversions.
- DMA: 16-channel Direct Memory Access controller for efficient data handling and reduced CPU load.
- Low Power Modes: Multiple low-power operation modes suitable for energy-efficient applications.
- Operating Voltage: Flexible operating voltage range of 1.71 V to 3.6 V.
Applications
- Industrial Automation and Control Systems: Ideal for industrial automation due to its robust processing capabilities and multiple communication interfaces.
- Consumer Electronics and Smart Home Devices: Suitable for consumer electronics and smart home devices requiring advanced processing and low power consumption.
- Healthcare Monitoring Devices: Used in healthcare monitoring devices that require precise data processing and low power modes.
- Internet of Things (IoT) Solutions: Perfect for IoT applications due to its processing power, low power modes, and multiple communication interfaces.
- Automotive Applications: Applicable in automotive systems that need robust and efficient microcontrollers.
- Robotics and Drone Technology: Used in robotics and drone technology for its advanced processing capabilities and low power consumption.
- Data Acquisition Systems: Suitable for data acquisition systems requiring precise and efficient data processing.
Q & A
- What is the maximum operating frequency of the MK65FN2M0VMI18?
The maximum operating frequency of the MK65FN2M0VMI18 is up to 120 MHz.
- How much flash memory does this microcontroller provide?
The MK65FN2M0VMI18 offers 2 MB of flash memory for code and data storage.
- Can the MK65FN2M0VMI18 be used in low-power applications?
- What kind of communication interfaces does it support?
- Is the MK65FN2M0VMI18 suitable for IoT applications?
- What is the package type of the MK65FN2M0VMI18?
- Is the MK65FN2M0VMI18 RoHS compliant?
- What is the operating voltage range of the MK65FN2M0VMI18?
- Does the MK65FN2M0VMI18 have a built-in ADC?
- What is the role of the DMA in the MK65FN2M0VMI18?
