Overview

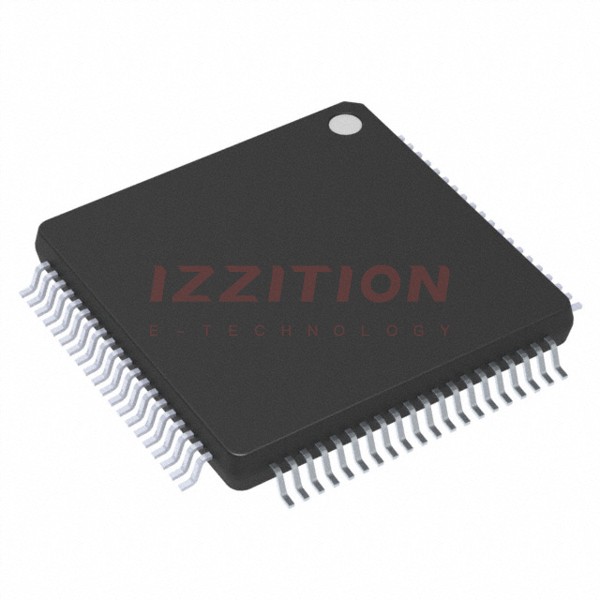

The MC9S08LC60LK is an 8-bit microcontroller from NXP USA Inc., designed specifically for battery-powered and handheld applications. It is part of the S08LC series, which features flash-based devices with enhanced EEPROM emulation. This microcontroller is equipped with a 40-MHz HCS08 CPU and supports the HC08 instruction set, including the added BGND instruction for background debugging.
Key Specifications
| Specification | Details |
|---|---|
| CPU | 40-MHz HCS08 CPU |
| Instruction Set | HC08 with added BGND instruction |
| Flash Memory | 60 KB |
| Package Type | 80-pin FQFP |
| Background Debugging | Background debugging system with breakpoint capability |
| Memory | Enhanced EEPROM emulation |
| Display Driver | Liquid Crystal Display (LCD) driver |
| Timer/PWM | Timer Pulse-Width Modulator (TPM) |
| Interrupts | Keyboard Interrupt (KBI), Real-Time Interrupt (RTI) |
Key Features
- High-Speed CPU: 40-MHz HCS08 CPU for efficient processing.
- Advanced Instruction Set: HC08 instruction set with the added BGND instruction for enhanced debugging capabilities.
- Flash Memory: 60 KB of flash memory with SuperFlash® technology.
- LCD Driver: Integrated Liquid Crystal Display (LCD) driver for display applications.
- Timer and PWM: Timer Pulse-Width Modulator (TPM) for various timing and control tasks.
- Interrupts: Keyboard Interrupt (KBI) and Real-Time Interrupt (RTI) for handling external events.
- Power Management: Advanced power management features including system power management status and control registers.
Applications
The MC9S08LC60LK microcontroller is particularly suited for battery-powered and handheld devices. Some common applications include:
- Battery-powered consumer electronics.
- Handheld medical devices.
- Portable industrial control systems.
- Automotive accessories and control units.
- Smart home devices and IoT applications.
Q & A
- What is the CPU speed of the MC9S08LC60LK microcontroller?
The CPU speed is 40 MHz.
- What type of memory does the MC9S08LC60LK have?
The microcontroller has 60 KB of flash memory with enhanced EEPROM emulation.
- What is the package type of the MC9S08LC60LK?
The package type is 80-pin FQFP.
- Does the MC9S08LC60LK support background debugging?
Yes, it supports background debugging with breakpoint capability.
- What display driver is integrated into the MC9S08LC60LK?
The microcontroller includes an integrated Liquid Crystal Display (LCD) driver.
- What are some common applications for the MC9S08LC60LK?
Common applications include battery-powered consumer electronics, handheld medical devices, portable industrial control systems, automotive accessories, and smart home devices.
- Does the MC9S08LC60LK have any power management features?
Yes, it includes advanced power management features such as system power management status and control registers.
- What type of interrupts does the MC9S08LC60LK support?
The microcontroller supports Keyboard Interrupt (KBI) and Real-Time Interrupt (RTI).
- What is the instruction set used by the MC9S08LC60LK?
The instruction set is HC08 with the added BGND instruction.
- Is the MC9S08LC60LK suitable for handheld applications?
Yes, it is specifically designed for battery-powered and handheld applications.
