Overview
The LPC54114J256BD64 is a part of the LPC541xx family of microcontrollers from NXP Semiconductors. This family represents the next generation of power-efficient microcontrollers, offering enhanced scalability and feature integration. The LPC54114J256BD64 is a 32-bit ARM Cortex-M4/M0+ MCU, designed to provide high performance and low power consumption, making it suitable for a wide range of applications.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Core | ARM Cortex-M4/M0+ |
| Flash Memory | 256 KB |

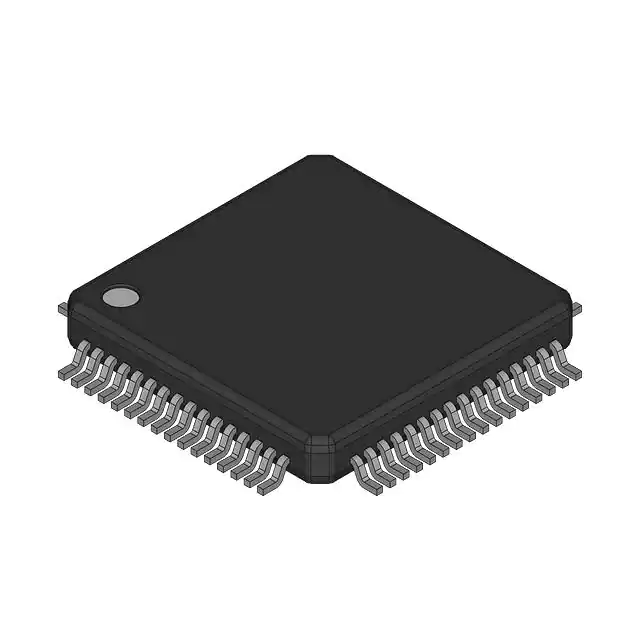

| Package Type | LQFP64 (10 x 10 x 1.4 mm) |
| ADC Resolution | 12 bits |
| ADC Channels | 1 |
| USB Interface | 1 x USB |
| Moisture Sensitivity Level (MSL) | 1 |
| Peak Package Body Temperature (PPT) | 240°C (lead soldering), 260°C (lead-free soldering) |
Key Features
- Optional Cortex-M0+ coprocessor for software and resource partitioning to lower power consumption.
- High-performance ARM Cortex-M4 core with a maximum clock speed.
- Low power consumption with various power-saving modes.
- Integrated USB interface for easy connectivity.
- 12-bit ADC with multiple channels for precise analog measurements.
Applications
- Industrial automation and control systems.
- Consumer electronics requiring high performance and low power.
- IoT devices and smart home applications.
- Automotive systems, especially those requiring robust and efficient processing.
- Medical devices that need precise analog measurements and low power consumption.
Q & A
- What is the core architecture of the LPC54114J256BD64? The LPC54114J256BD64 is based on the ARM Cortex-M4/M0+ core.
- How much flash memory does the LPC54114J256BD64 have? The LPC54114J256BD64 has 256 KB of flash memory.
- What is the package type of the LPC54114J256BD64? The package type is LQFP64 (10 x 10 x 1.4 mm).
- Does the LPC54114J256BD64 have a USB interface? Yes, it has one USB interface.
- What is the ADC resolution of the LPC54114J256BD64? The ADC resolution is 12 bits.
- What are the typical applications of the LPC54114J256BD64? Typical applications include industrial automation, consumer electronics, IoT devices, automotive systems, and medical devices.
- What is the moisture sensitivity level (MSL) of the LPC54114J256BD64? The MSL is 1.
- What is the peak package body temperature (PPT) for the LPC54114J256BD64? The PPT is 240°C for lead soldering and 260°C for lead-free soldering.
- Does the LPC54114J256BD64 support power-saving modes? Yes, it supports various power-saving modes to reduce power consumption.
- Is the LPC54114J256BD64 suitable for automotive applications? Yes, it is suitable for automotive systems due to its robust and efficient processing capabilities.
