Overview
The LPC1311FHN33 is a 32-bit microcontroller based on the Arm Cortex-M3 core, designed for embedded applications by NXP USA Inc. This microcontroller is known for its high level of integration and low power consumption, making it suitable for a variety of applications that require efficient performance and minimal power usage.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | ARM® Cortex®-M3 32-bit |
| Program Memory Size | 8 KB Flash |
| RAM Size | 8 KB SRAM |
| Operating Voltage | 2 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C (TA) |

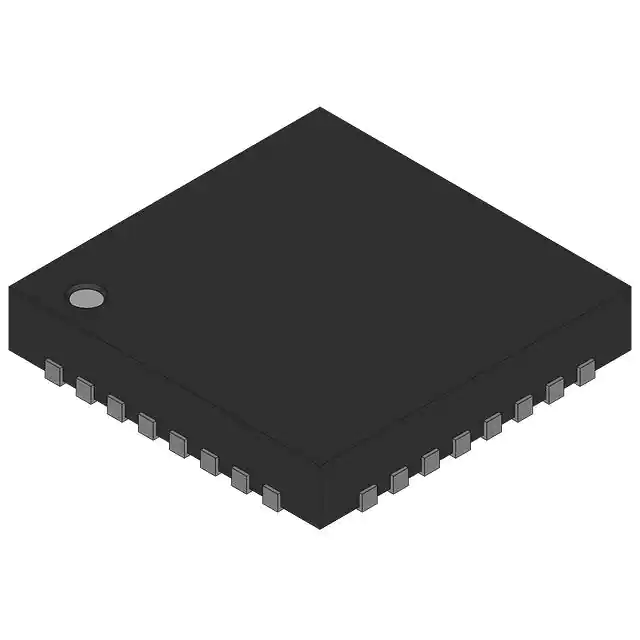

| Package / Case | 33-HVQFN |
| Speed | Up to 72 MHz |
| Number of I/O | 26 |
| Connectivity | I²C, Microwire, SPI, SSI, UART/USART |
| Data Converters | A/D 8x10b |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
Key Features
- Highly integrated with a rich set of analog and digital peripherals.
- Low power consumption with various low-power modes.
- Flexible clocking options with an on-chip oscillator.
- Comprehensive peripheral set including Brown-out Detect/Reset, POR, and WDT.
- Support for multiple communication protocols such as I²C, Microwire, SPI, SSI, and UART/USART.
- 8-bit ADC with 10-bit resolution.
Applications
The LPC1311FHN33 is versatile and suitable for a wide range of embedded applications, including but not limited to:
- Industrial control systems.
- Consumer electronics.
- Medical devices.
- Automotive systems.
- IoT devices.
Q & A
- What is the core processor of the LPC1311FHN33?
The core processor is the ARM® Cortex®-M3 32-bit.
- How much program memory does the LPC1311FHN33 have?
The LPC1311FHN33 has 8 KB of Flash memory.
- What is the operating voltage range of the LPC1311FHN33?
The operating voltage range is 2 V ~ 3.6 V.
- What is the maximum operating temperature of the LPC1311FHN33?
The maximum operating temperature is 85°C (TA).
- What package type does the LPC1311FHN33 come in?
The LPC1311FHN33 comes in a 33-HVQFN package.
- What are the communication protocols supported by the LPC1311FHN33?
The LPC1311FHN33 supports I²C, Microwire, SPI, SSI, and UART/USART.
- Does the LPC1311FHN33 have any analog-to-digital converters?
Yes, it has an 8-bit ADC with 10-bit resolution.
- What are some of the peripherals included in the LPC1311FHN33?
The peripherals include Brown-out Detect/Reset, POR, and WDT.
- Is the LPC1311FHN33 suitable for low-power applications?
Yes, it is designed with low power consumption and various low-power modes.
- Can the LPC1311FHN33 be used in industrial control systems?
Yes, it is suitable for industrial control systems among other applications.
